Leeson

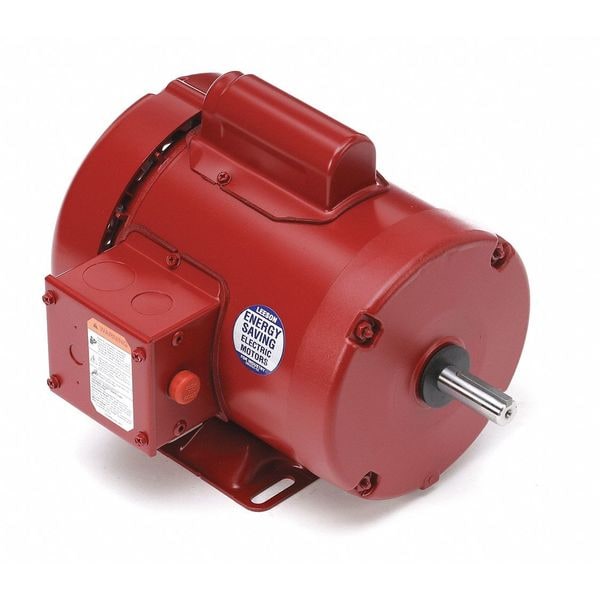

Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56 Frame

product price: $298.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start
  • Phase Single
  • RPM Range 1,701-1,800
  • Voltage 115/208-230V AC
  • Frame 56
See all product information

Product Information

Dimensions

Overall Length 10 1/2 in
Shaft Length 1 7/8 in
Length Less Shaft 8 5/8 in
Shaft Dia. 5/8 in
Manufacturers Warranty Length 1 yr

Details

Item Farm Duty Motor
Motor Design Capacitor-Start
Phase Single
HP 1/2
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 56
Motor Service Factor 1.15
Motor Thermal Protection Manual
Motor Enclosure Design Totally Enclosed Fan-Cooled
Nameplate RPM 1,725
Motor Application Farm Duty
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Sub Application High Torque
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Standards CSA (LR2025), UL (E49747)
Frame Material Rolled steel
Item - Farm Duty Motors Farm Duty Motor
Ins. Class B
Max. Ambient Temperature 40 Degrees C
Nominal Efficiency 66 %
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Hz 60 Hz
Full Load Amps 8.8/4.4 A
Motor Bearings Ball
Motor Efficiency Group Standard Efficient
Duty Continuous
Finish Enamel
Capacitor Required Yes
Max. Ambient Temp. 40 Degrees C
Usable @ 208V Yes
Duty Cycle Continuous
Weight 25 lb
No. of Speeds 1
Usable @ 200V No

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.4 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
