  11. WashdownMotor, 2hp, 1745RPM, 230/460VAC
No Product Image Available

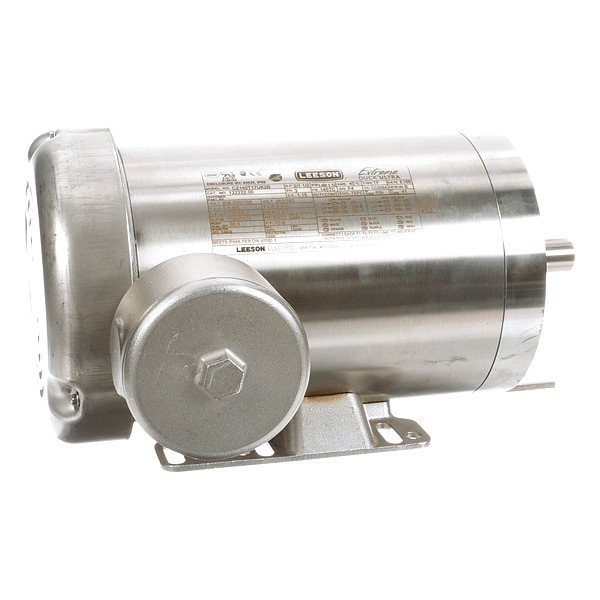

WashdownMotor, 2hp, 1745RPM, 230/460VAC

  • Mfr # 122222.00

  • Zoro # G811931262

product price: $2,681.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122222.00
Zoro #
G811931262
UPC #
691720053515
Country of Origin
United States

Dimensions

Stud Size
3/8"-16
Length Less Shaft
11 1/8 in
Shaft Dia.
7/8 in
Manufacturers Warranty Length
Not available
Bolt Circle Dia.
5 7/8 in
Shaft Length
2 1/8 in
Overall Length
13 1/4 in
Body Dia.
6.6 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145TC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Includes
Not available
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
1,435 RPM
Motor Bearings
Ball
Inverter Rated
Inverter Rated
Motor Mounting Position
Horizontal
Finish
No Paint
No. of Speeds
1
Voltage Compatibility
230V AC, 460V AC
Ins. Class
F
Inverter Rating
10:1
Nominal Efficiency
86.5 %
Motor Mounting Type
C-Face, Rigid Base
Full Load Amps
5.8/2.9 A
Endshield Material
Stainless Steel
Usable @ 208V
Not Usable at 208V
Bearing Protection
Not available
HP @ 50Hz
1 1/2 hp
Voltage @ 50Hz
190/380V AC
Duty Cycle
Continuous
Nameplate RPM
1,745 RPM
Max. Ambient Temp.
40 Degrees C
Shaft Material
Stainless Steel
Motor Application
General Purpose
NEMA Design
B
Hz
60/50 Hz
Service Factor @ 50Hz
1.15
Standards
CE, CSA Certified, UL Listed
Weight
62 lb
Motor Shaft Rotation
CW/CCW
Full Load Amps @ 50Hz
2.0 A
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
