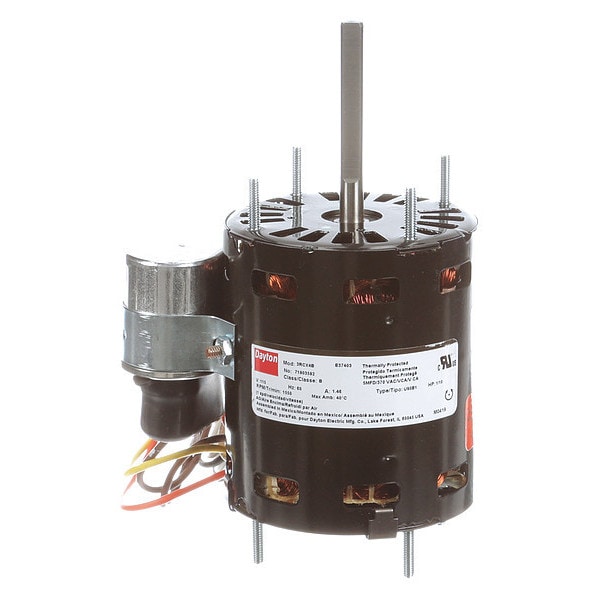

HVAC Motor, 1/10 HP, 1550 rpm, 115V, 3.3
  • Zoro #: G0261931
  • Mfr #: 71903592M
$62.35
  • Application: Replaces 1/10 HP PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
  • Motor Thermal Protection: Auto
  • Nameplate RPM: 1550
See full product details
This item ships free.

Dayton #71903592M Specifications

  • Zoro #: G0261931
  • Mfr #: 71903592M
Application: Replaces 1/10 HP PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications Motor Thermal Protection: Auto
Nameplate RPM: 1550 Motor Design: Permanent Split Capacitor
Cord Length: 20" Motor Bearings: Ball
Item: HVAC Motor Number of Shafts: 1
Shaft Length: 2-1/2" Frame: 3.3
Motor Enclosure Design: Open Air-Over Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Length Less Shaft: 4-1/4" Motor Sub Application: Direct Drive Fan/Blower
RPM Range: 1501-1600 Motor Mounting Type: Stud
Mounting Stud Location: 4/Both Ends Hz: 60
Voltage: 115 Ins. Class: B
Motor Application: HVAC/R Phase: 1
HP: 1/10 Motor Service Factor: 1.00
Capacitor Required: Yes Body Dia.: 3.3"
Motor Shaft Design: Flat Shaft Dia.: 5/16"
No. of Speeds: 1 Motor Shaft Rotation: CW/CCW
Stud/Base Mtg. Pattern: 2" x 2" Full Load Amps: 1.4
Standards: UL Recognized (E37403), CSA Certified (244617) Duty: Continuous
Mounting Pattern: 2 x 2 Includes: 5 MFD 370 VAC Capacitor
Max. Ambient Temp.: 40 Degrees C Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

HVAC Motor, Motor Design Permanent Split Capacitor, 1/10 HP, 115 Voltage, Motor Shaft Rotation CW/CCW, Open Air-Over, Motor Mounting Type Stud, Shaft Dia. 5/16 In., Shaft Length 2-1/2 In., Number of Shafts 1, Motor Thermal Protection Auto, 1550 Nameplate RPM, 1, 3.3 Frame, Ball Motor Bearings, Motor Service Factor 1.00, 60 Hz, Body Dia. 3.3 In., Ins. Class B, Max. Ambient Temp. 40 Degrees C, 4-1/4 In., 2 In. x 2 In., Flat

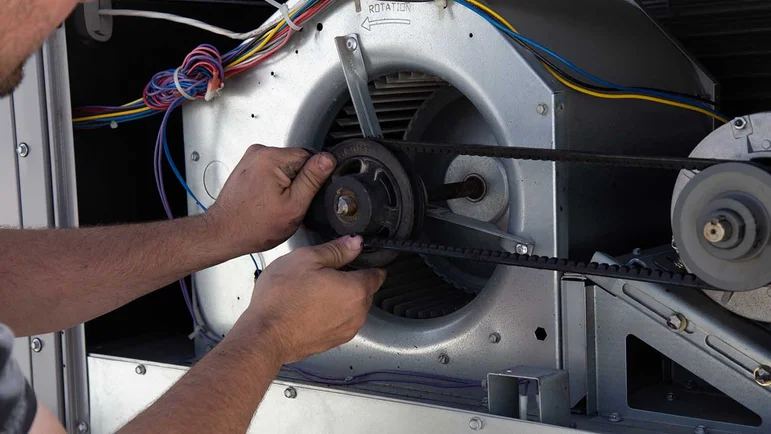

Technical Guides
