  11. WashdownMotor, 3/4hp, 1725RPM, 230/460VAC
No Product Image Available

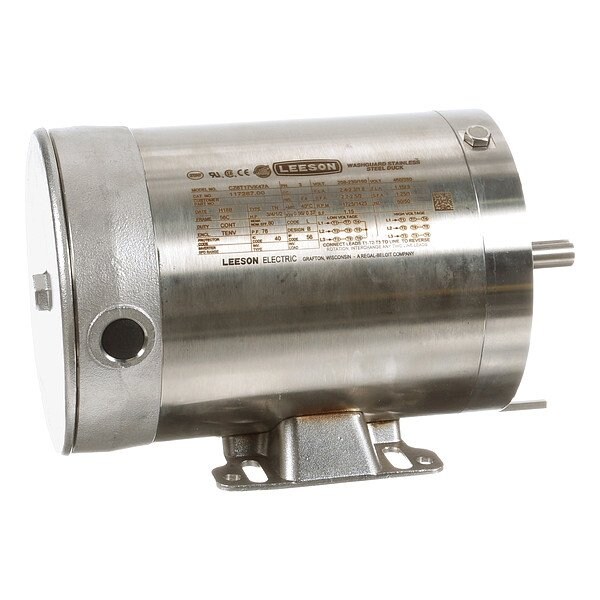

WashdownMotor, 3/4hp, 1725RPM, 230/460VAC

  • Mfr # 117267.00

  • Zoro # G311931304

product price: $1,331.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
117267.00
Zoro #
G311931304
UPC #
691720105818
Country of Origin
United States

Dimensions

Overall Length
11 3/4 in
Shaft Length
1 7/8 in
Body Dia.
6.6 in
Bolt Circle Dia.
5 7/8 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
Not available
Length Less Shaft
9 13/16 in
Stud Size
3/8"-16

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Application
General Purpose
Weight
43 lb
Motor Mounting Position
Horizontal
HP @ 50Hz
1/2 hp
Usable @ 200V
Not Usable at 200V
Inverter Rated
Inverter Rated
Inverter Rating
6:1
Hz
60/50 Hz
Service Factor @ 50Hz
1.15
Finish
Epoxy-Coated
Full Load Amps
2.4/1.2 A
Nameplate RPM
1,725 RPM
Voltage Compatibility
230V AC, 460V AC
Motor Bearings
Ball
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Full Load Amps @ 50Hz
1.1 A
Nominal Efficiency
80 %
Duty Cycle
Continuous
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Mounting Type
C-Face
No. of Speeds
1
Motor Shaft Design
Keyed
Motor Service Factor
1.15
RPM @ 50Hz
1,425 RPM
Voltage @ 50Hz
190/380V AC
Max. Ambient Temp.
40 Degrees C
Standards
CE, CSA Certified, UL Listed
Shaft Material
Not available
Bearing Protection
Not available
Endshield Material
Stainless Steel
Includes
Not available
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.4/1.2 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
