Shop DAYTON

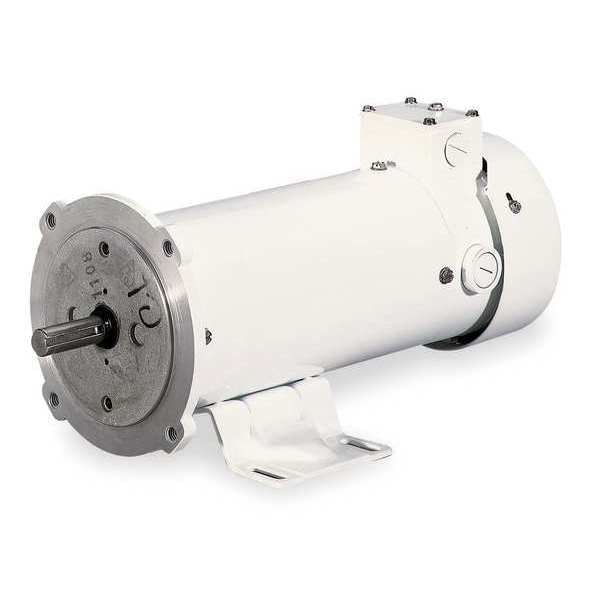

Wshdwn Motor, TEFC, 3/4 HP, 1750rpm, 90VDC

  • Mfr # 1F646A

  • Zoro # G0503483

product price:  $1,031.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
Motor Thermal Protection
None
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1F646A
Zoro #
G0503483
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
11 7/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
15 in
Frame Size
56C
Shaft Diameter
5/8 in

Details

Item
Washdown Motor
Motor Design
Permanent Magnet
HP
3/4
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Rotation
CW/CCW
Full Load Amps
7.6 A
Motor Application
Washdown
Full Load Torque
27.4 in-lb
Voltage Compatibility
90V DC
Motor Mounting Type
Face/Base
Nameplate RPM
1,750 RPM
Ins. Class
H
Bearings
Ball
Standards
UL Recognized (E47479)
RPM Group
1701-1800
Features
Removable Base
Max. Ambient Temp.
40 Degrees C
NEMA Design
H
Motor Shaft Rotation
CCW, CW
Motor Bearings
Ball
Usable @ 208V
No
Motor Sub Application
Aeration Fan
Usable @ 200V
No
No. of Speeds
1
Removable Base
Yes
Number of Speeds
1
Insulation Class
H
Bearing Type
Ball
Frame Finish
Epoxy-Coated
Sub Application
Aeration Fan
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
Washdown
Ambient Temperature - Maximum
40 Degrees C
Full Load Current
7.6 A
Includes
Removable Base
Nameplate Voltage
90V DC
Product Type
Washdown Motor

Description

Washdown Motor,3/4 HP,1750,56C,90V

Restrictions

Hazardous material
