  11. WashdownMotor, 3hp, 3490RPM, 230/460VAC

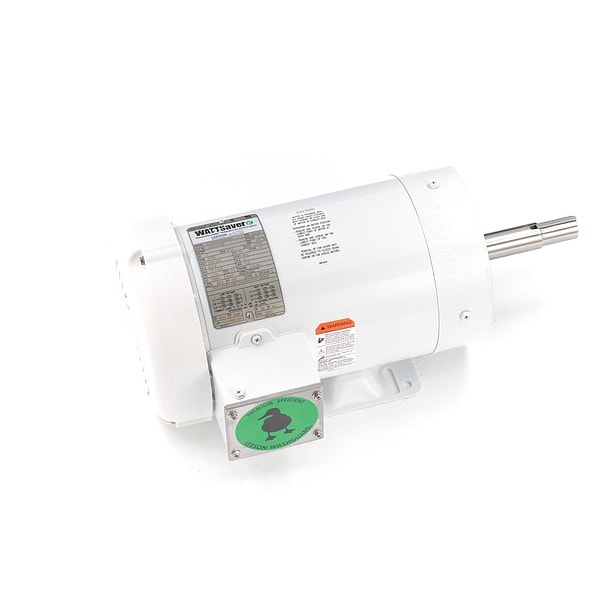

Leeson WashdownMotor, 3hp, 3490RPM, 230/460VAC 122191.00 - main

WashdownMotor, 3hp, 3490RPM, 230/460VAC

  • Mfr # 122191.00

  • Zoro # G600722972

product price: $1,022.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122191.00
Zoro #
G600722972
UPC #
691720245538
Country of Origin
United States

Dimensions

Overall Length
16 7/16 in
Shaft Length
4 1/4 in
Length Less Shaft
12 3/16 in
Shaft Dia.
7/8 in
Body Dia.
7.3 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
145JM
Motor Frame Material
Steel
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Duty Cycle
Continuous
Motor Shaft Design
Keyed
Motor Mounting Type
C-Face
Motor Application
General Purpose
Standards
CE, CSA Certified, UL Recognized, USDA Approved
Hz
60 Hz
Bearing Protection
Shaft Shields
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Service Factor
1.2
Weight
52 lb
NEMA Design
B
Motor Shaft Rotation
CW/CCW
Full Load Amps
8.0/4.0 A
Ins. Class
F
Nameplate RPM
3,490 RPM
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Drain Plugs
(1) in Conduit Box
Removable Base
No
Nominal Efficiency
86.5 %
Finish
Epoxy-Coated
Usable @ 208V
Usable at 208V
Motor Bearings
Ball
Endshield Material
Aluminum
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.0/4.0 A, 145JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
