  11. WashdownMotor, 3hp, 3490RPM, 230/460VAC

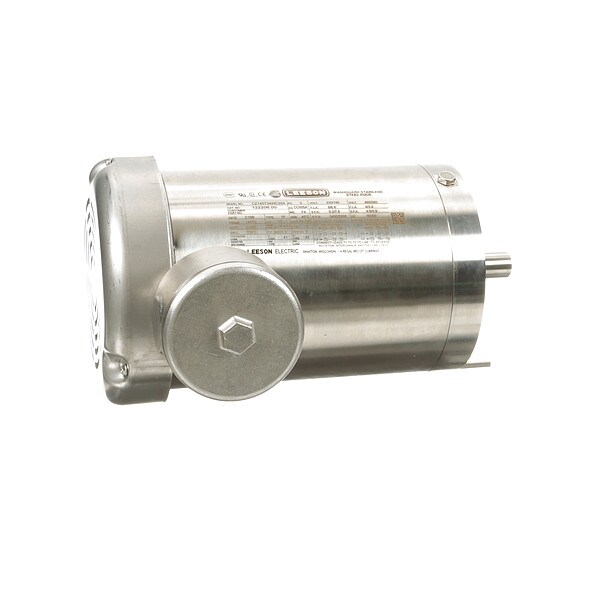

Leeson WashdownMotor, 3hp, 3490RPM, 230/460VAC 122206.00 - main

WashdownMotor, 3hp, 3490RPM, 230/460VAC

  • Mfr # 122206.00

  • Zoro # G800722970

product price: $2,659.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122206.00
Zoro #
G800722970
UPC #
691720991411
Country of Origin
United States

Dimensions

Length Less Shaft
10 7/8 in
Shaft Length
2 in
Bolt Circle Dia.
5 7/8 in
Overall Length
13 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
7/8 in
Body Dia.
6.5 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
145TC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Full Load Amps
8.0/4.0 A
Standards
CE, CSA Certified, UL Recognized
Inverter Rated
Inverter Rated
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Motor Service Factor
1.2
Voltage @ 50Hz
230/460V AC
Motor Mounting Position
Horizontal
No. of Speeds
1
Motor Mounting Type
C-Face
Max. Ambient Temp.
40 Degrees C
Weight
56 lb
Drain Plugs
(1) in Conduit Box
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
86.5 %
HP @ 50Hz
3 hp
Removable Base
Yes
Bearing Protection
Shaft Shields
Service Factor @ 50Hz
1.2
Conduit Box Location
Exterior
RPM @ 50Hz
3,490 RPM
Full Load Amps @ 50Hz
8.0/4.0 A
Ins. Class
F
Finish
Epoxy-Coated
Motor Shaft Design
Keyed
Nameplate RPM
3,490 RPM
Motor Bearings
Ball
Motor Application
General Purpose
Hz
60/50 Hz
Usable @ 208V
Not Usable at 208V
Endshield Material
Stainless Steel
NEMA Design
B
Inverter Rating
10:1
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.0/4.0 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base Yes, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
