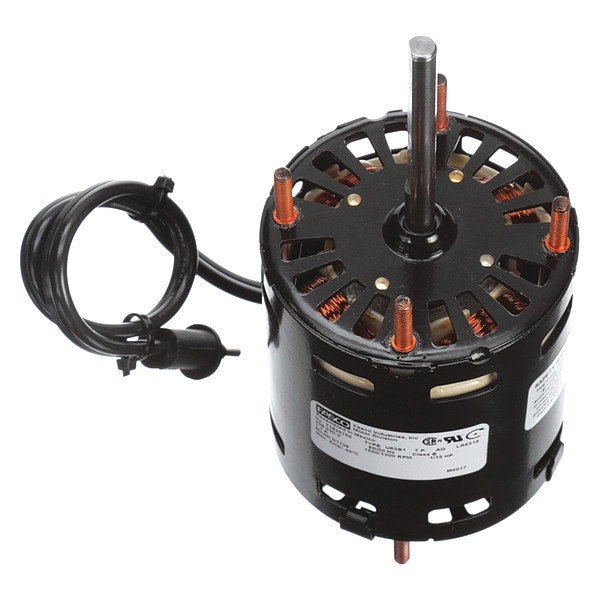

HVAC Motor, OAO, 1/15 HP, 1550/1300rpm, Stud

  • Mfr # D1126

  • Zoro # G7583886

product price:  $105.00
/ea
Free Shipping & Returns

Key Features

Voltage
208-230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1126
Zoro #
G7583886
UPC #
663001023302
Country of Origin
Mexico

Dimensions

Shaft Length
3 in
Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Cord Length
13 in
Length Less Shaft
4 1/8 in
Overall Length
6 15/16 in
Stud Size
#10-32
Bolt Circle Dia.
2 7/8 in
Lead Length
13 in
Bolt Circle Diameter
2 7/8 in
Shaft Diameter
5/16 in
Frame Size
3.3
Mounting Stud Thread Size
#10-32
Body Diameter
3.3 in
Wire Rope Length
6 15/16 in

Details

Voltage
208-230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/15
RPM Range
1,501-1,600
Max. Ambient Temp.
40 Degrees C
Plug Type
Round 2 Pin
Item
OEM Replacement Motor
Frame
3.3
Ins. Class
B
Motor Thermal Protection
Auto
Motor Sub Application
OEM Replacement
Motor Mounting Type
Ring/Stud
Phase
Single
Number of Shafts
1
Motor Design
Shaded Pole
Standards
CSA Certified, UL Recognized
Motor Shaft Rotation
CWSE
Motor Bearings
Sleeve
Application
General Application
Full Load Amps
1.1 A
Mounting Stud Location
4/Both Ends
Motor Service Factor
1
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
No. of Speeds
1
Hz
60 Hz
Duty
Continuous
Motor Shaft Design
Flat
Motor Application
HVAC/R
Stud/Base Mtg. Pattern
2-27/32 in x 90 Degrees
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Mounting Holes
(8) #10-32
Usable @ 208V
Usable at 208V
Weight
5 lb
Motor Frame Material
Steel
RPM @ 50Hz
1,300 RPM
Mounting
Stud
Insulation Class
B
Sub Application
General Purpose
Bearing Type
Sleeve
Nameplate RPM @ 50 Hz
1,300 RPM
Wattage
50 W
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
1.1 A
Drive Type
Direct Drive
Shaft Design
Flat
Frame Material
Steel
Product Type
OEM Replacement Motor

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.1 A Full Load Amps, 3.3 Frame, Output Watts 50 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
