  11. WashdownMotor, 5hp, 3495RPMJM, 230/460VAC

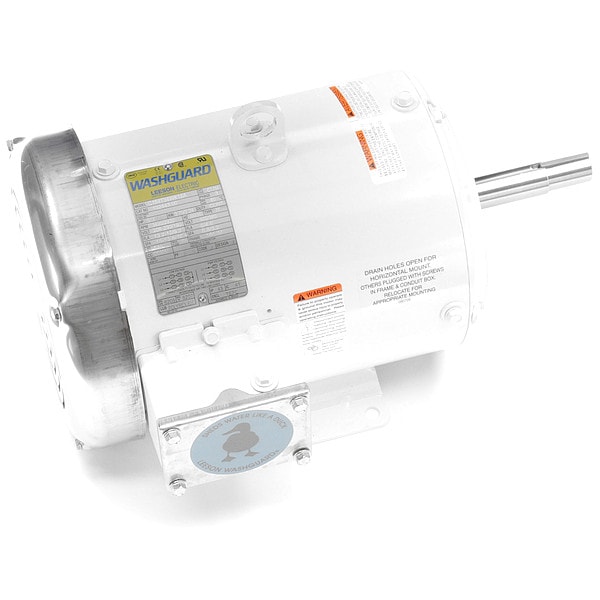

Leeson WashdownMotor, 5hp, 3495RPMJM, 230/460VAC 132443.00 - main

WashdownMotor, 5hp, 3495RPMJM, 230/460VAC

  • Mfr # 132443.00

  • Zoro # G406626658

product price: $1,740.18
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
132443.00
Zoro #
G406626658
UPC #
691720052105
Country of Origin
Mexico

Dimensions

Overall Length
16 5/8 in
Shaft Length
4 1/4 in
Shaft Dia.
7/8 in
Body Dia.
8.5 in
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
184JM
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Nameplate RPM
3,495 RPM
Motor Application
General Purpose
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Nominal Efficiency
88.5 %
Usable @ 208V
Usable at 208V
No. of Speeds
1
Full Load Amps
13.2-12.0/6.0 A
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Voltage Compatibility
190/380, 208-230/460
Duty Cycle
Continuous
Weight
88 lb
Motor Service Factor
1.15
Standards
BISSC Approved, CE Certified, CSA Certified, UL Listed, USDA Approved
Motor Mounting Type
C-Face, Rigid Base
NEMA Design
B
Motor Shaft Design
Keyed
Hz
60/50 Hz
Max. Ambient Temp.
40 Degrees C
Finish
Epoxy-Coated
Inverter Rating
10:1
Endshield Material
Aluminum
Usable @ 200V
Usable at 200V
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,495 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.2-12.0/6.0 A, 184JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
