Shop LEGRAND

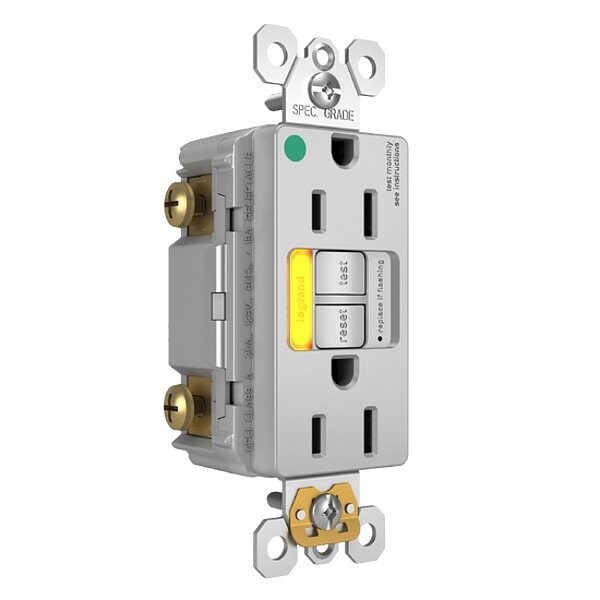

GFCI, 15 A, 125V AC, Gray, Plastic

  • Mfr # 1597HGTRPIAMBGRY

  • Zoro # G322785187

product price:
$
60.65
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Hub Type
Feed Through
Shrouded
No
Series
Radiant(R)
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1597HGTRPIAMBGRY
Zoro #
G322785187
UPC #
785007289923
Country of Origin
China

Dimensions

Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Overall Depth
1 in
Mount Hole Center-to-Center Width
0.9 in

Details

Hub Type
Feed Through
Shrouded
No
Series
Radiant(R)
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-2
AFCI
No
Grounding
Grounded
Item
GFCI
Housing Material
Plastic
Minimum Operating Temperature
-35 Degrees C
Maximum Operating Temperature
66 Degrees C
Flange Type
Non-Flanged
Cover Type
No Cover
Number of Wall Plates Included
0
Voltage Rating
125V AC
Phase
Single
Standards
RoHS Compliant
Receptacle Type
Duplex
Mount Type
Flush
NEMA Enclosure Rating
5
GFCI
Yes
Number of Poles
2
Includes
Wall Plate
Number of Gangs
1
Surge Protection
No
Polarized
No
IP Rating
Not Rated
Housing Color
Gray
Wiring Method
Back/Side
NEMA Receptacle Configuration
5-15R
Features
Auto-Ground Clip Assures a Positive Ground to Metal Box, Conducts an Industry-Leading Automatic Self-Test Every 3 Seconds, Enhanced Tamper-Resistant Automatic Shutter System Allows for Easier Plug Insertion While Inhibiting Young Children or Others from Inserting Objects, Equipped with Patented SafeLock(R) Protection, FSUL Listed (Federal Specification WC596), GFCI Receptacles Make it Easier to Fix Trips with a Reset Button Right on the Device, GFCIs Prevent Line-Load Reversal Due to Inadvertent Miswire, High-Impact-Resistant, Thermoplastic Construction for Superior Strength and Durability, Hospital Grade GFCIs are Subjected to Additional Performance Requirements, Including Reliability, Integrity, Strength, and Durability Tests, If Critical Components are Damaged and Ground-Fault Protection is Lost, Power to the Receptacle is Disconnected, Power-Indicating Amber LED Provides Visual Indication of Power Being Present at the Receptacle, Protects Against Shock Caused by Ground-Fault Occurrences, The Trip Indicator Light Flashes if the Device Fails the Self-Test, Signaling the GFCI is to Be Replaced, There is No Power to the Face or Downstream Receptacles if Wired Incorrectly
For Location
Indoor
Contact Material
Brass
Resistance Properties
Tamper Resistant
Market
Commercial
Number of Outlets
2
Grade
Hospital Grade
Self Testing
Yes
Number of Wires
3
Current Rating
15 A

Description

GFCI, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Plastic, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards RoHS Compliant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
