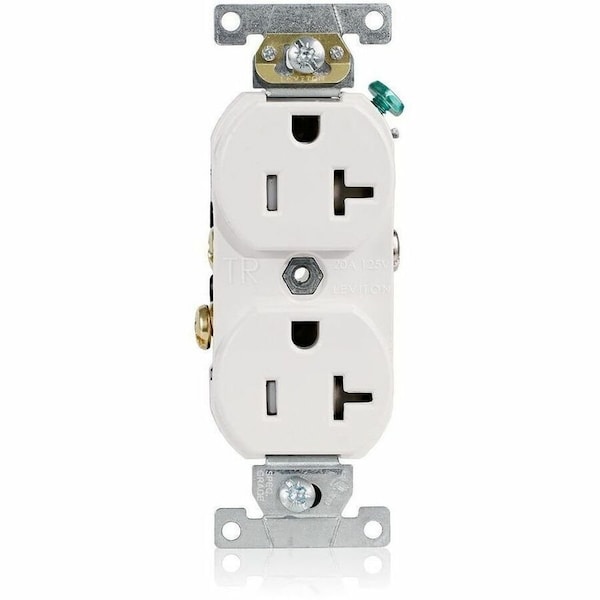

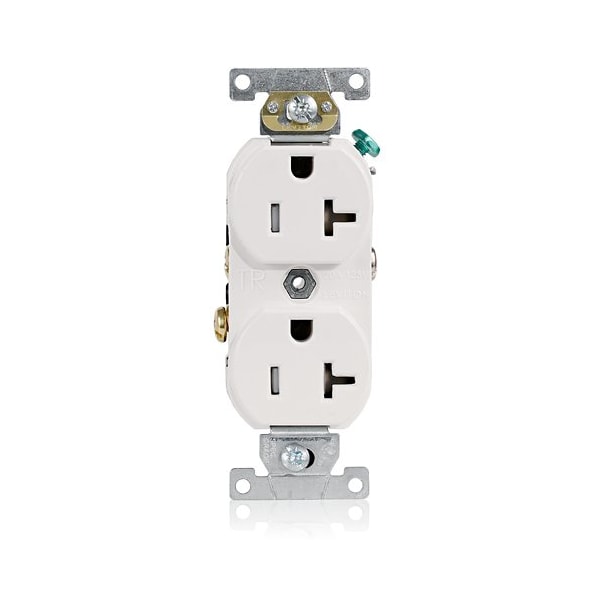

Plugs&Rcptcls, 20A, 125VAC, Wht, Thrmplstc

  • Mfr # TCR20-W

  • Zoro # G622587481

product price:
$
8.15
/ea

Key Features

Surge Protection
No
Horsepower Rating
1 hp
Connection Orientation
Straight
NEMA Receptacle Configuration
5-20R
Maximum Operating Temperature
60 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TCR20-W
Zoro #
G622587481
UPC #
78477655429
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Surge Protection
No
Horsepower Rating
1 hp
Connection Orientation
Straight
NEMA Receptacle Configuration
5-20R
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
Market
Commercial
Flange Type
Non-Flanged
Receptacle Type
Duplex
Housing Material
Thermoplastic
Features
Smooth Face
Current Rating
20 A
IP Rating
Not Rated
AFCI
No
For Environment
Food and Beverage, Oily/Greasy
Number of Gangs
1
Wire Connection Type
Screw Terminals
Housing Color
White
Cover Type
No Cover
Mount Type
Flush
Contact Material
Brass
Number of Poles
2
Grounding
Grounded
Voltage Rating
125V AC
Grade
General Use
GFCI
No
NEMA Enclosure Rating
Not Rated
Resistance Properties
Tamper Resistant
Item
Plugs and Receptacles
Wiring Method
Side
Number of Wires
3
Phase
Single
Polarized
Yes
Standards
CSA, FULS Marking, UL
Number of Outlets
2
Number of Wall Plates Included
0
Shrouded
No

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
