Shop LEGRAND

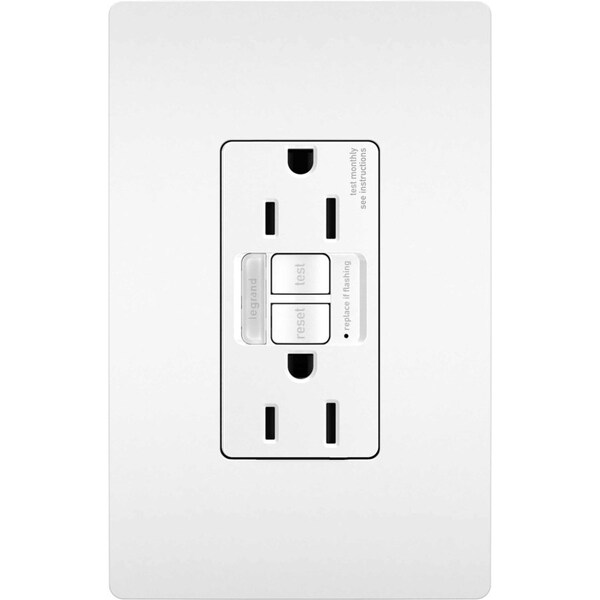

GFCI, 15 A, 125V AC, White, Plastic

  • Mfr # 1597NTLTRWCCD4

  • Zoro # G722784223

product price:
$
22.49
/ea

Key Features

Market
Commercial
Minimum Operating Temperature
-35 Degrees C
Polarized
No
Mount Hole Center-to-Center Width
0.9 in
Mount Hole Center-to-Center Height
3.3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1597NTLTRWCCD4
Zoro #
G722784223
UPC #
785007135701
Country of Origin
China
Market
Commercial
Minimum Operating Temperature
-35 Degrees C
Polarized
No
Item
GFCI
Includes
Wall Plate
Wire Connection Type
Screw Terminals
For Location
Indoor
Standards
cULus, UL 94
Maximum Operating Temperature
66 Degrees C
Shrouded
No
Grounding
Grounded
NEMA Enclosure Rating
5
Housing Material
Plastic
Number of Wall Plates Included
0
Number of Gangs
1
Contact Material
Brass
AFCI
No
Number of Poles
2
Phase
Single
Voltage Rating
125V AC
Cover Type
No Cover
Series
Radiant(R)
Wiring Method
Back/Side
IP Rating
Not Rated
Flange Type
Non-Flanged
Hub Type
Feed Through
GFCI
Yes
UL 94 Flammability Rating
V-2
Resistance Properties
Tamper Resistant
Surge Protection
No
Mount Type
Flush
NEMA Receptacle Configuration
5-15R
Housing Color
White
Number of Wires
3
Receptacle Type
Duplex
Number of Outlets
2
Features
Complete the Look with a Sleek, Screwless Radiant(R) Wall Plate, and Coordinate with Other Designer Switches and Outlets Available from the Radiant(R) Collection, Features Durable, High-Impact Resistant Thermoplastic Construction, Hidden Sensor Controls Night Light Based on Ambient Light, Automatically Turning On When it is Dark, More Color Options Available to Fit Any Style, Including Finishes to Match Current Hardware and Lighting Trends, Protects Against Shock Caused by Ground-Fault Occurrences, Protects Children with a Patented Tamper-Resistant Shutter System that Prevents Improper Insertion of Foreign Objects, Complete with "Invisi-Shutters" for an Invisible Effect, Replaces Any Standard Outlet with Ease, in as Little as 10 Minutes, Unlike Breaker Alternatives, GFCI Outlets Make it Easier to Fix Trips with a Convenient Reset Button on the Outlet
Grade
General Use
Current Rating
15 A

Description

GFCI, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Plastic, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards cULus, UL 94, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
