  11. Straight Blade Receptacle, 5-15R, 15 A, 120/125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

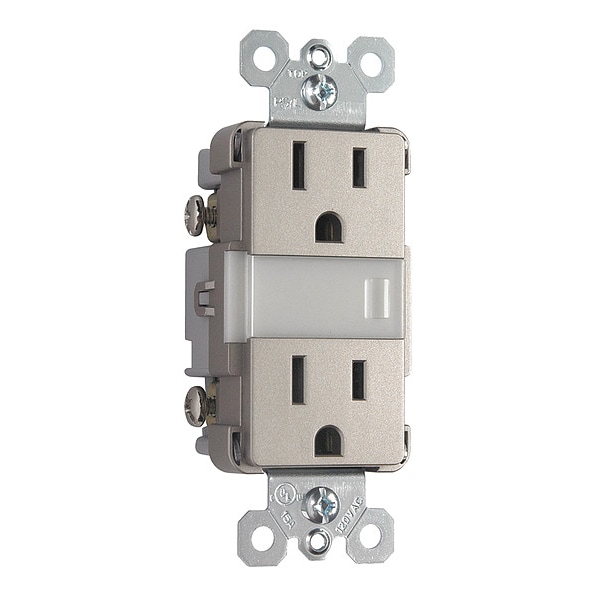

Legrand Straight Blade Receptacle, 5-15R, 15 A, 120/125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded NTL885TRNICC6 - main

Straight Blade Receptacle, 5-15R, 15 A, 120/125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # NTL885TRNICC6

  • Zoro # G8034023

product price: $36.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
120/125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NTL885TRNICC6
Zoro #
G8034023
UPC #
-
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
4.2 in
Face Plate Height
2.6 in
Overall Depth
1.3 in
Maximum Wire Size
12 AWG
Depth (U S)
1.5"
Height (U S)
2.75"
Width (U S)
1.6"

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
120/125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
UL Listed, cULus Listed
Resistance Properties
Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
Includes
Optional Louver
Special Features
Tamper-resistant
Wiring Combination
Combination Duplex Receptacle
NEMA Configuration
5-15
Type
Tamper-Resistant
Voltage
120VAC/125VDC
AFCI
No
Number of Outlets
2
Market
Residential
Surge Protection
No
Contact Material
Brass
Housing Material
Thermoplastic
Number of Wall Plates Included
0
GFCI
No
Features
Built-In Night Light
Grade
General Use
UL 94 Flammability Rating
V-2
UL Standard
Yes
UL Listing No
UL498
cULus
Yes

Description

Combination Device, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Plastic, Mount Type Recessed, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Impact Resistant, Tamper Resistant, Standards cULus Listed, UL Listed, Voltage Rating 125V AC
