Plugs and Receptacles
- Mfr # 16R29-UW
- Zoro # G522586393
product price:Â
$
74.39
/ea
Key Features
Current Rating
400 A
Connection Orientation
Angled
End Type
Taper Nose
Series
16
Overall Width
2.29 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R29-UW
- Zoro #
- G522586393
- UPC #
- 78477718322
- Country of Origin
- Mexico
- Current Rating
- 400 A
- Connection Orientation
- Angled
- End Type
- Taper Nose
- Series
- 16
- Mounting Style
- Through Hole Mounting
- Standards
- CSA, UL
- Terminal Connection Type
- Threaded Stud
- Maximum Operating Temperature
- 185 Degrees F
- For Location
- Outdoor
- Housing Color
- White
- Housing Material
- Santoprene TPV
- Voltage Rating
- 600V AC, 600V DC
- Minimum Operating Temperature
- -40 Degrees F
- Gender
- Male
- Item
- Single Pole Receptacle
- NEMA Enclosure Rating
- 3R
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Flange Shape
- Square
- Contact Material
- Brass
Description

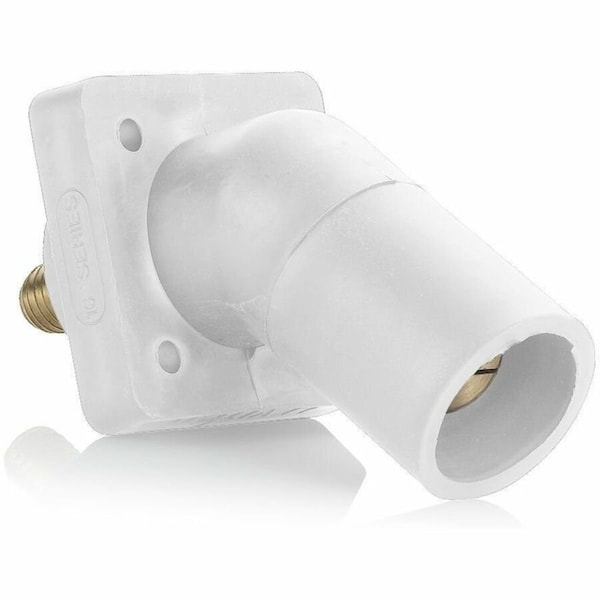

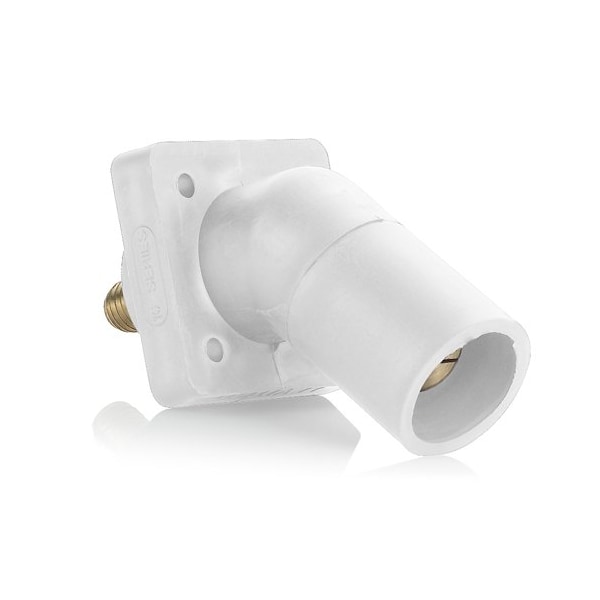

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color White, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.29 in, Flange Shape Square, Flange Width 2.29 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
