  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

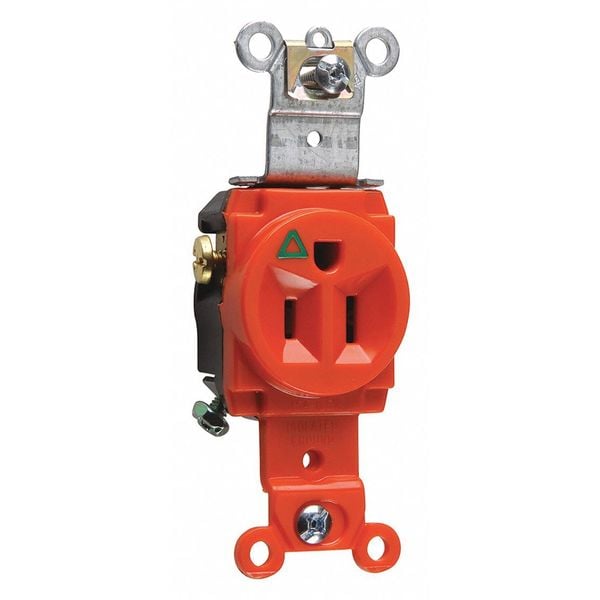

Legrand Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground IG5261 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG5261

  • Zoro # G7766267

product price:  $18.25
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IG5261
Zoro #
G7766267
UPC #
785007652611
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Wire Size
#14 - #10

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Standards
CSA C22.2 No. 42, Fed Spec, UL 498, cUL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Surge Suppression
No
Corrosion Resistant
Yes
Sub-Category
Single Receptacles
Power Indicator
No
Tamper Resistant
No
Special Features
Corrosion resistant
Application Environment
Commercial
HP
1/2 hp
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Single
Material
Nylon
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
No
Contact Material
Brass
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Grade
Federal Specification
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1/2 hp
Market
Commercial
Connection Orientation
Straight
Nema Rating
5-15R
Dielectric Strength
Withstands 2000V minimum
Standard
UL498, CSA C22.2 No. 42
Connection
Back and side wire
Temperature Rating
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Environmental Conditions
Flammability: UL94 V2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Single, Resistance Properties Corrosion Resistant
