Shop PASS & SEYMOUR

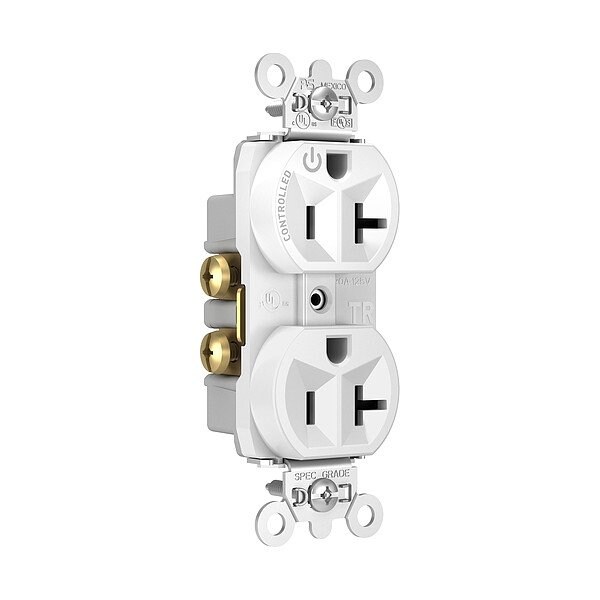

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Grounded

  • Mfr # TR5362CHW

  • Zoro # G016332680

product price:  $13.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
TR5362CHW
Zoro #
G016332680
UPC #
785007051230
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Face Plate Width
1.1 in
Mount Hole Center-to-Center Width
0.9 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back/Side
Grounding
Grounded
Housing Color
White
Standards
CSA/cUL Approved, FSUL WC596, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6, Standard UL 498, UL Listed File Number E140596
Resistance Properties
Corrosion Resistant
Number of Gangs
1
Minimum Operating Temperature
-40 Degrees C
Grade
Federal Specification
For Location
Indoor
Number of Outlets
2
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Features
Auto-Ground Clip Assures Positive Ground, Backed-Out Tri-Drive Brass Terminal Screws for Faster Installation. Internal Screw-Pressure Plate Back and Side Wire Capability. Two Back Wire Holes for Additional Wiring Flexibility, Corrosion-Resistant Plated Steel Strap is Locked into Face and Back Body to Resist Pulling Away from the Face/body Assembly, Dual Mechanical Shutter System to Help Prevent Insertion of Foreign Objects, Easily Accessed Break-Off Line-Contact Connecting Tab for Fast and Easy Split-Circuit Wiring, Two Drive Screws Anchor Steel Strap to Back Body and Face Where Abrupt Removal Torque is Greatest
Housing Material
Nylon
Market
Commercial
Contact Material
Brass
Maximum Operating Temperature
60 Degrees C
Polarized
No
NEMA Enclosure Rating
5
GFCI
No
Phase
Single
Mount Type
Recessed
Surge Protection
No
Flange Type
Non-Flanged
AFCI
No
Shrouded
No
Hub Type
Feed Through
IP Rating
Not Rated
Cover Type
No Cover
Number of Wall Plates Included
0

Description

Duplex Receptacle, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color White, Housing Material Nylon (Face), PVC (Back Body), NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA/cUL Approved, FSUL WC596, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6, Standard UL 498, UL Listed File Number E140596, Voltage Rating 125V AC
