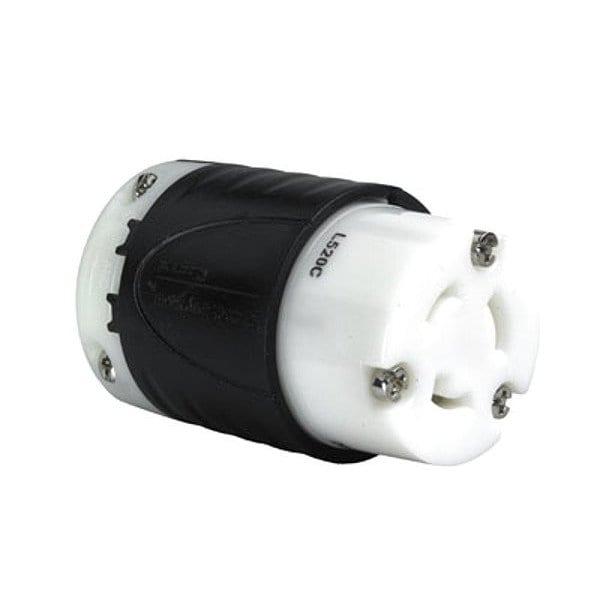

Shop LEGRAND

TURNLOK

  • Mfr # L520C

  • Zoro # G722784711

product price:  $47.99
/ea

Key Features

Phase
Single
Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Visible Stamped NEMA Configuration and Device Rating
For Maximum Cable Diameter
1.15 in
Grade
General Use
Minimum Operating Temperature
-40 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L520C
Zoro #
G722784711
UPC #
785007252019
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.75 in
Maximum Wire Size
4 AWG
Outside Diameter
2.2 in
Wire Rope Length
3.33 in
Overall Length
3.33 in

Details

Phase
Single
Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Visible Stamped NEMA Configuration and Device Rating
Grade
General Use
Minimum Operating Temperature
-40 Degrees F
Housing Color
Black
Contact Material
Brass
Shrouded
No
Series
TURNLOK(R)
Market
Industrial
Connection Orientation
Straight
Housing Material
Nylon 6/6
Voltage Rating
125V AC
NEMA Enclosure Rating
Not Rated
IP Rating
IP20
Resistance Properties
Corrosion Resistant
Midget Locking
No
Standards
UL 498
Number of Poles
2
NEMA Receptacle Configuration
L5-20R
Item
Locking Connector
Current Rating
20 A
Number of Wires
3
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Power and Ground Indicating Light
No
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-2

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, Housing Material Nylon 6/6, IP Rating IP20, NEMA Receptacle Configuration L5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Corrosion Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.75 in, Grade General Use
