Shop LEGRAND

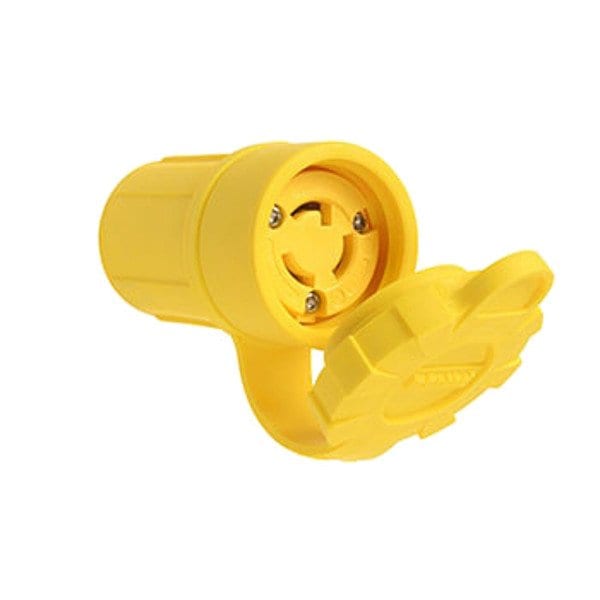

TURNLOK

  • Mfr # 25W34

  • Zoro # G922784573

product price:  $66.99
/ea

Key Features

NEMA Enclosure Rating
4, 4X, 6, 6P
NEMA Receptacle Configuration
L7-15R
Connection Orientation
Straight
Wire Rope Length
4.03 in
Voltage Rating
277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
25W34
Zoro #
G922784573
UPC #
785007114560
Country of Origin
United States

Dimensions

Wire Rope Length
4.03 in
For Maximum Cable Diameter
0.625 in
For Minimum Cable Diameter
0.3 in
Outside Diameter
1.85 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Overall Length
4.03 in

Details

NEMA Enclosure Rating
4, 4X, 6, 6P
NEMA Receptacle Configuration
L7-15R
Connection Orientation
Straight
Voltage Rating
277V AC
Current Rating
15 A
Item
Locking Connector
Standards
UL 498
Housing Material
Thermoplastic
Features
Color-Coded Sealing Bushings Provided for Large Range of Cord Diameters, Devices Resist High-Pressure Hose Down of 1,500 PSI, Large Ribs on Body for a Superior Grip When Mating
Number of Wires
3
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
140 Degrees F
Power and Ground Indicating Light
No
IP Rating
IP67
Grade
General Use
Minimum Operating Temperature
-40 Degrees F
Housing Color
Yellow
Series
TURNLOK(R)
Wire Connection Type
Screw Terminals
Midget Locking
No
Shrouded
No
Market
Commercial
Phase
Single
Resistance Properties
Watertight
For Location
Indoor, Outdoor
Number of Poles
2

Description

Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Yellow, Housing Material Thermoplastic, IP Rating IP67, NEMA Receptacle Configuration L7-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Watertight, Shrouded No, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.3 in, Grade General Use, Horsepower Rating Not Applicable
