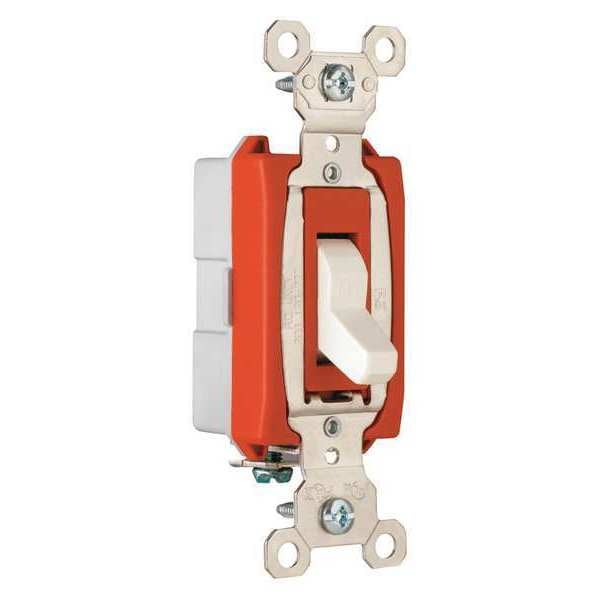

Legrand Wall Switch, 1-Pole Switch Type, 20A PS20AC1W - main

Wall Switch, 1-Pole Switch Type, 20A

  • Mfr # PS20AC1W

  • Zoro # G7766389

product price: $7.39
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PS20AC1W
Zoro #
G7766389
UPC #
785007237306
Country of Origin
Mexico

Dimensions

Switch Height
2.2 in
Overall Width
1.3 in
Switch Depth
1.1 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Wire Size
4

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Description/Special Features
Nylon Toggle
Antimicrobial
No
Standards
cULus Listed, UL 498/20, WD-1, WD-6
Voltage
125.0 V
Grounding
Grounded
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant
Housing Material
Thermoplastic
Contact Material
Silver Alloy
Voltage Rating
120V AC
Horsepower Rating
1 hp
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
115 Degrees C
Market
Industrial
Switch Material
Thermoplastic
Strap Material
Nickel-Plated Brass
Features
Auto-Ground Clip Assures Positive Ground, Grounding Terminal is Standard with Screw-Pressure Plate Back Wire, Heavy-Duty Bumpers, Heavy-Duty, Brass Alloy, One-Piece Contact Arm
Minimum Operating Temperature
-40 Degrees F
Current Rating
20 A
Type
Straight Blade
Number of Wires
3
Amperage
15 A
Number Of Poles
Double Pole
Standard
UL 498
Special Features
Ready to wire, rugged 2pc cord grip & internal dust shield
Connection
Wire Grounding
NEMA Rating
5-15R

Description

Wall Switch, Color White, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Resistance Properties Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant, Standards cULus Listed, UL 498/20, WD-1, WD-6, Strap Material Nickel-Plated Brass, Switch Style Toggle
