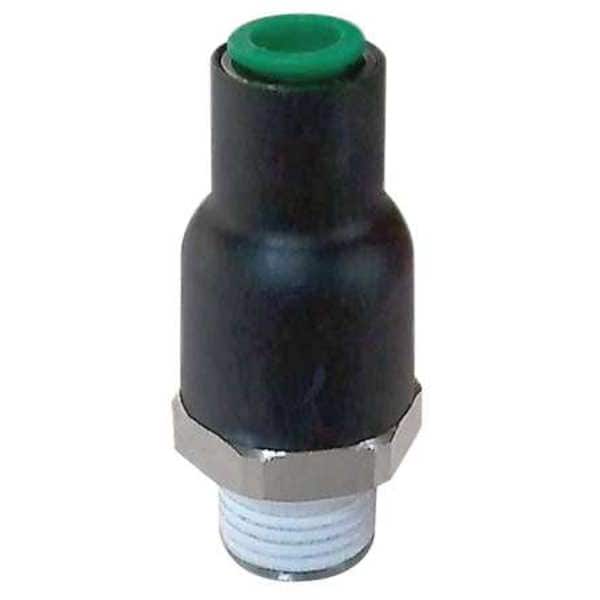

1/4" Tube x MNPT Meter Input Check Valve

  • Mfr # 7985 56 14
  • Zoro # G4416185
product price:
$
26.15
/ea

Key Features

Pipe Size
1/4"
Hex Size
3/4 in
Connection Type
Tube x MNPT
Connection
Tube x MNPT
Body Material
Polymer
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7985 56 14
Zoro #
G4416185
UPC #
820099550442
Country of Origin
China

Dimensions

Pipe Size
1/4"
Hex Size
3/4 in
Overall Height
1-27/64"
Width
5/8"
Size
1/4"
Length
1-27/64"
Pipe or Tube Size - Check Valves
1/4"
Overall Length
1.42 in
Pipe or Tube Size
1/4 in
Connection Size - Side 2
1/4 in
Nominal Valve Size
1/4 in
Connection Size - Side 1
1/4 in
Wire Rope Length
1.42 in

Details

Connection Type
Tube x MNPT
Connection
Tube x MNPT
Body Material
Polymer
Max. Temp. - Valves
158 Degrees F
Application - Valves
Compressed Air
Sub-Category
Brass
Material of Construction
Nylon and Nickel Plated Brass
Max. Water Pressure - Valves
Not Rated
Seal Material - Check Valves
Nitrile
Seal Material
Buna-N
Cracking Pressure - Check Valves
3.600 psi
Connection Type - Check Valves
Push x BSPT
Body Material - Valves
Nylon, Nickel Plated Brass
Item - Check Valves
Check Valve
Min. Temp. - Valves
-32 Degrees F
Flow Design
Single
Seat Material
Buna-N
Cracking Pressure
3.6 psi
Max. Pressure
145 psi
Max. Steam Pressure - Valves
Not Rated
Item
Meter Input Check Valve
Max. Temp.
158 Degrees F
Seat Material - Check Valves
Nitrile
Mechanism and Body Design
Inline
Full Flow - Valves
Yes
Mounting Orientation - Check Valves
Horizontal, Vertical
Standards
RoHS Compliant
Mounting Orientation
Horizontal, Vertical
Seal
Graphite And 304 Stainless Steel
Type
Meter In
For Media
Compressed Air
Includes Counterweight
No Counterweight
Silent Check
Standard
Connection Gender - Side 1
Female
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
-32 Degrees F
Connection Type - Side 1
Tube
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
145 psi
Valve Body Style
Inline
Check Mechanism Material
Buna-N
Connection Gender - Side 2
Male
Check Mechanism
Swing
Maximum Pressure - Steam
Not Rated
Connection Type - Side 2
NPT
Operating Temperature - Maximum
158 Degrees F
Valve Series
7895

Description

LEGRIS 7985 56 14 is a 1/4 in meter input check valve for compressed air service. Installed at the meter inlet, it permits flow in one direction and helps reduce reverse flow into the supply line. This inline valve has a 1/4 in tube x 1/4 in MNPT connection and a full-flow design for air systems requiring backflow control.

Key Features:

  • Meter input check valve for one-way flow control at the meter inlet
  • Media: Compressed air
  • Connection: 1/4 in tube x 1/4 in MNPT
  • Inline body style with swing check mechanism and single-flow design
  • Body material: Nylon and nickel-plated brass
  • Seal, seat, and check mechanism material: Buna-N/Nitrile
  • Cracking pressure: 3.6 psi
  • Maximum operating pressure: 145 psi
  • Operating temperature range: -32 degrees F to 158 degrees F
  • Mounting orientation: Horizontal or vertical
  • Hex size: 3/4 in
  • Overall length: 1.42 in
