  11. Flow Control Regulator, 8mm OD

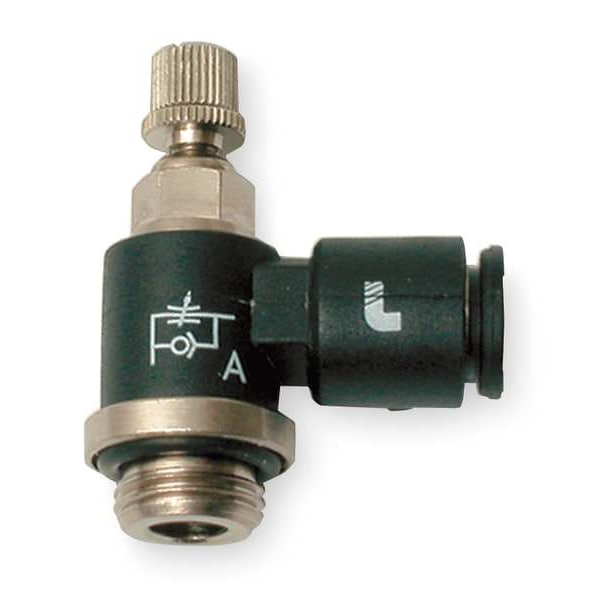

Legris Flow Control Regulator, 8mm OD 7660 08 17 - main

Flow Control Regulator, 8mm OD

  • Mfr # 7660 08 17

  • Zoro # G0697067

product price: $35.15
/ea

Key Features

Body Material
Nylon
Standards
1907/2006 (REACH), 2002/95/EC (RoHS), 97/23/EC (PED)
Overall Length
2 1/16 in
Valve Inlet Port
8mm Push To Connect
Valve Max. Pressure Rating
145 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7660 08 17
Zoro #
G0697067
UPC #
820099328461
Country of Origin
Spain

Dimensions

Overall Length
2 1/16 in
Pipe Size
3/8"
Tube Size
8mm
Outlet Port Connection Size
G 3/8
Inlet Port Connection Size
8 mm

Details

Item
Flow Control Valve
Body Material
Nylon
Standards
1907/2006 (REACH), 2002/95/EC (RoHS), 97/23/EC (PED)
Valve Inlet Port
8mm Push To Connect
Valve Max. Pressure Rating
145 psi
Directions Controlled
1
Valve Outlet Port
3/8 in BSPP
Pressure Range
14.5 to 145 psi
Max. Temp.
158 Degrees F
Connection
BSPP x Tube
Seal Material
Nitrile
Rotation
360 Degrees
Application
Automotive, Packaging, Pneumatic Circuits, Robotics, Semiconductors, Textile
Finish
Nickel Plated
Operating Temperature - Maximum
158 Degrees F
Adjustment Method
Screwdriver
Inlet Port Connection Type
Push-On
Control Direction
Uni-Directional
Operating Temperature - Minimum
32 Degrees F
Inlet Port Connection Gender
Female
Operating Pressure - Maximum
145 psi
Adjustment Material
Brass
Flow Rate - Maximum
37 scfm
Configuration
Inline
For Tube Type
Fluoropolymer, Nylon, Polyurethane, Semi-Rigid Nylon
Operating Pressure - Minimum
15 psi
Product Type
Flow Control Valve
For Media
Compressed Air
Outlet Port Connection Gender
Male
Outlet Port Connection Type
BSPP

Description

Flow Control Valve, Directions Controlled 1, Valve Inlet Port 8mm Push To Connect, Valve Outlet Port 3/8 in BSPP, Valve Max. Pressure Rating 145 psi, Pressure Range 14.5 to 145 psi, Max. Temp. 158 Degrees F, 360 Degrees Rotation, Pneumatic Valves Product Group Flow Control Valve
