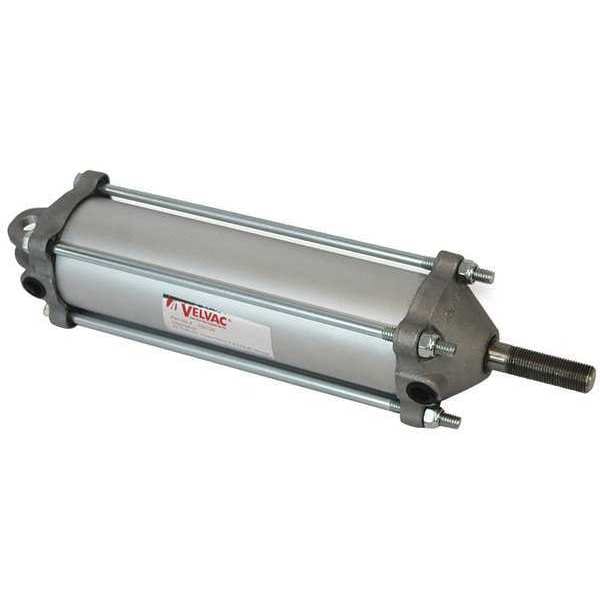

Air Cylinder, 2 1/2 in Bore, 6 in Stroke, Single Acting, Aluminum .

  • Mfr # 100126
  • Zoro # G5246263
product price:
$
203.99
/ea
Free Shipping & Returns

Key Features

Cylinder Action
Single Acting
Bore Dia.
2 1/2 in
Max. Pressure
100 psi
Body Material
Aluminum
Rod Dia.
0.625 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
100126
Zoro #
G5246263
UPC #
728974026511
Country of Origin
China
Cylinder Action
Single Acting
Item
Air Cylinder
Max. Pressure
100 psi
Body Material
Aluminum
Tube Material
Aluminum
Cylinder Type
Spring Return
Magnetic Piston
Magnetic Piston
Stroke
6 in
Mount
Clevis
Max. Load
386 lb
Spring Retraction Force
483 lb
Single Acting/Double Acting
Single Acting
Tie Rod Material
Metal
Finish
Brushed
Piston Rod Material
Metal
Air Cylinder Mount
Clevis
Nose Mount Thread
None
Temp. Range
-40 Degrees to 180 Degrees F
End Cap Material
Aluminum
Features
normal Extension, Spring Return
Piston Material
Buna-N
Cushion Type
None
For Fluid Type
Air
Maximum Operating Pressure
120 psi
Cylinder Repair
Non-Repairable
Maximum Operating Temperature
185 Degrees F
Minimum Operating Temperature
-20 Degrees F
System of Measurement
Inch
Air Inlet Type
NPT
Inlet Gender
Female
Actuation Type
Air Extend, Spring Retract
Minimum Operating Pressure
10 psi
Number of Rods
Single Rod
Rod Rotation
Non-Rotating Rod
Includes
Mounting Kit

Dimensions

Bore Dia.
2 1/2 in
Rod Dia.
0.625 in
Overall Length
13.75 in Retracted
Rod Thread Length
1 3/4 in
Pivot Hole Dia.
0.5 in
Port Size
1/4-18 NPTF
Air Cylinder Bore Dia.
2 1/2 in
Rod Thread Size
5/8"-18
Dimension A
1 3/4
Dimension Cd
0.5
Dimension Kk
5/8-18 UNF-2A
Retracted Length
13 7/8 in
Bore Diameter
2 1/2 in
Rod Diameter
5/8 in
Stroke Length
6 in
Inlet Size
1/4"
Extended Length
19 7/8 in
Overall Width
2 1/2 in
Overall Height
2 1/2 in

Description

Air Cylinder, Body Material Aluminum, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Clevis, Bore Diameter 2 1/2 in, Cushion Type None, Stroke Length 6 in, Inlet Size 1/4 In., Air Inlet Type NPT, Spring Retraction Force 483 lb, Cylinder Action Single Acting, Number of Rods Single Rod, System of Measurement Inch, Mounting Location Rear, Tie Rod Material Metal, Overall Width 2 1/2 in, Overall Height 2 1/2 in, Inlet Gender Female, Includes Mounting Kit
