Shop LEGRIS

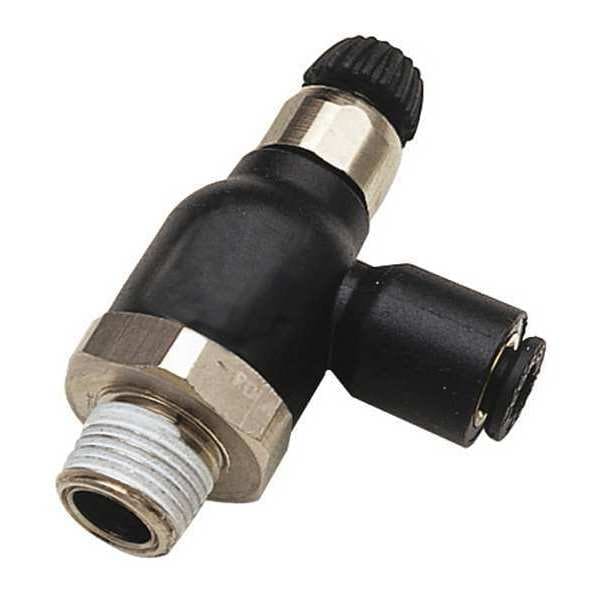

FlowCntrl Regulator, Comp, 3/8", 1/4"P, MNPT

  • Mfr # 7065 60 14

  • Zoro # G2341202

product price:
$
56.19
/ea

Key Features

Body Material
Nylon
Standards
1907/2006 (REACH), 2002/95/EC (RoHS), 97/23/EC (PED)
Pressure Range
14.5 to 145 psi
Valve Outlet Port
1/4 in NPT
Directions Controlled
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7065 60 14
Zoro #
G2341202
UPC #
820099321837
Country of Origin
China

Dimensions

Pipe Size
1/4"
Tube Size
3/8"
Outlet Port Connection Size
1/4 in
Inlet Port Connection Size
3/8 in

Details

Item
Flow Control Valve
Body Material
Nylon
Standards
1907/2006 (REACH), 2002/95/EC (RoHS), 97/23/EC (PED)
Pressure Range
14.5 to 145 psi
Valve Outlet Port
1/4 in NPT
Directions Controlled
1
Max. Temp.
158 Degrees F
Valve Inlet Port
3/8 in Push To Connect
Valve Max. Pressure Rating
145 psi
Rotation
360 Degrees
Connection
MNPT x Tube
Seal Material
Nitrile
Application
Automotive, Packaging, Pneumatic Circuits, Robotics, Semiconductors, Textile
For Media
Compressed Air
Control Direction
Uni-Directional
Inlet Port Connection Type
Push-On
Operating Pressure - Minimum
15 psi
Configuration
Inline
Adjustment Material
Brass
Inlet Port Connection Gender
Female
For Tube Type
Fluoropolymer, Nylon, Polyurethane, Semi-Rigid Nylon
Adjustment Method
Screwdriver
Product Type
Flow Control Valve
Operating Pressure - Maximum
145 psi
Operating Temperature - Minimum
32 Degrees F
Outlet Port Connection Gender
Male
Flow Rate - Maximum
76 scfm
Operating Temperature - Maximum
158 Degrees F
Finish
Nickel Plated
Outlet Port Connection Type
NPT

Description

Flow Control Valve, Directions Controlled 1, Valve Inlet Port 3/8 in Push To Connect, Valve Outlet Port 1/4 in NPT, Valve Max. Pressure Rating 145 psi, Pressure Range 14.5 to 145 psi, Max. Temp. 158 Degrees F, 360 Degrees Rotation, Pneumatic Valves Product Group Flow Control Valve
