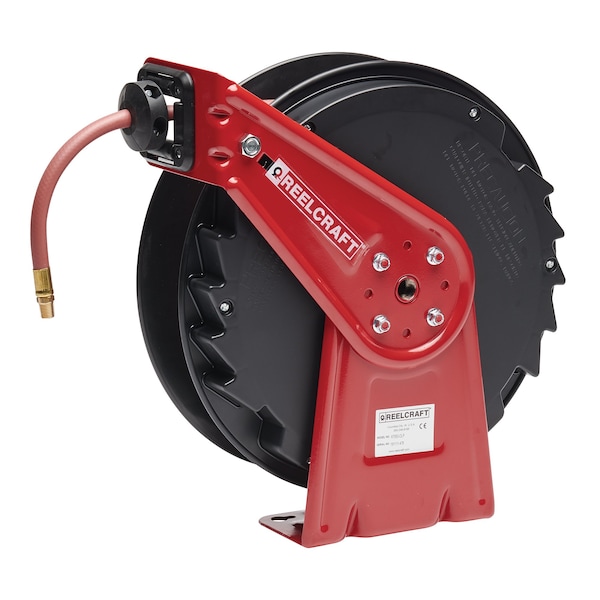

Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass
Mfr # RT650-OLP
Zoro # G2576136
product price:Â
$
303.99
/ea
Free Shipping & Returns
Key Features
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose Inside Dia.
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- RT650-OLP
- Zoro #
- G2576136
- UPC #
- 699567009481
- Country of Origin
- United States
Dimensions
- Hose Inside Dia.
- 3/8 in
- Overall Height
- 17 7/8 in
- Hose Length
- 50 ft
- Overall Width
- 6 1/4 in
- Overall Length
- 16 1/2 in
- Reel Diameter
- 7 11/16 in
- Hose Outside Dia.
- 5/8 in
- Overall Dimensions
- 16 1/2 in L x 6 1/4 in W x 17 7/8 in H
- Mounting Hole Center to Center Width
- 2 1/4 in
- Swivel Outlet Size
- 1/4 in
- Mount Base Width
- 4 19/32 in
- Reel Width
- 6 1/4 in
- Hose Fitting B Size
- 1/4 in
- Mount Base Height
- 8 in
- Swivel Outlet Thread Size
- 1/4 in - 18
- Hose Fitting A Size
- 1/4 in
- Swivel Inlet Thread Size
- 1/4 in - 18
- Fitting Size
- 1/4 in x 1/4 in
- Swivel Inlet Size
- 1/4 in
- Mount Hole Diameter
- 5/16 in
- Mounting Hole Center to Center Height
- 6 in
- Wire Rope Length
- 16 1/2 in
- Length
- 16 1/2 in
Description
The REELCRAFT RT650-OLP is a spring return hose reel for air or water service in industrial and commercial settings. It includes a 50 ft x 3/8 in I.D. PVC hose and uses a stationary base for ceiling, floor, or wall mounting. This light-duty reel has an open design, a locking spring-loaded latch, and a maximum operating pressure of 300 psi with an operating temperature range of 32 to 150 degrees F.
Key Features of the REELCRAFT RT650-OLP Spring Return Hose Reel:
- Spring return drive: Retracts the hose using an enclosed, permanently sealed industrial-grade drive spring.
- Included hose: Supplied with a red 3/8 in x 50 ft PVC hose for air or water applications.
- Mounting options: Can be mounted to a ceiling, floor, or wall with a stationary base.
- Adjustable guide arm: Single guide arm adjusts to seven positions for hose payout direction.
- Corrosion-resistant construction: Powder-coated steel components and a rugged engineered plastic spool help resist premature corrosion.
- Latch design: Locking, spring-loaded latch with widened ratchet and latch pawl design to reduce wear.
- Connection details: Reel inlet is 1/2 in FNPT; hose outlet is 1/4 in MNPT with brass male NPT fittings.
- Bearing and swivel design: Permanently lubricated bearings and base-plumbed inlet help reduce stress on the swivel.
- Included accessories: Comes with a hose stop bumper.
- Size and weight: Overall dimensions are 16 1/2 in L x 6 1/4 in W x 17 7/8 in H; weight is 27 lb.
