Shop LEGRIS

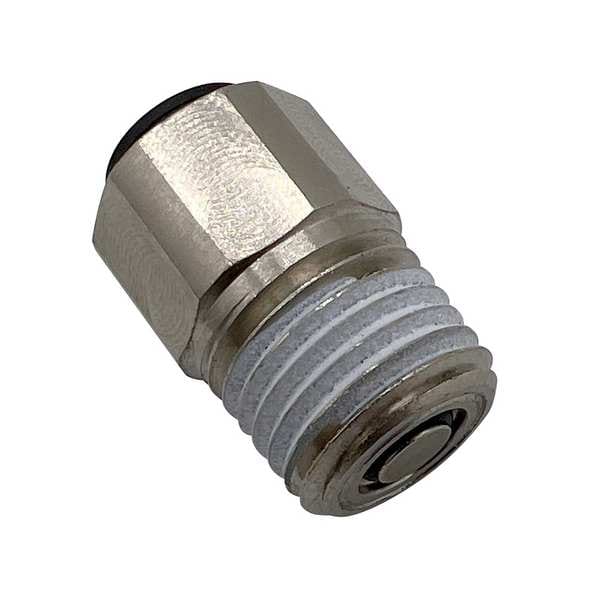

Metric Push-to-Connect Fitting, Brass, Silver

  • Mfr # 3091 08 13

  • Zoro # G304995115

product price:
$
14.39
/ea

Key Features

Specific Fitting Shape
Straight Adapter
Standards
2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743
Application
Air
Color
Silver
System of Measurement
Imperial/Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3091 08 13
Zoro #
G304995115
UPC #
-
Country of Origin
France
Item
Push-Fit Adapter Fitting
Specific Fitting Shape
Straight Adapter
Standards
2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743
Application
Air
Color
Silver
System of Measurement
Imperial/Metric
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Included
Vacuum Rating
755 mmHg
Compatible Tube Hardness
95 Shore A
Maximum Operating Pressure
10 barg
Release Ring Material
Stainless Steel
Compatible Tube Material
Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon
Fitting Side B Connection Type
Push-to-Connect
Fitting Material
Fiberglass-Reinforced Nylon
Thread Sealant Type
PTFE
Fitting Shape
Straight
Fitting Side A Connection Type
BSPT
Finish/Coating
Nickel Plated
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
158 Degrees F
Release Type
Ring
Fitting Side 2 Connection Type
Push-to-Connect
Connector Type
Adapter
Finish
Nickel-Plated
Operating Temperature - Minimum
32 Degrees F
Fitting Side 1 Connection Type
BSPT
Operating Temperature - Maximum
176 Degrees F
Series
Legris
For Media Type
Air

Description

Push-Fit Adapter Fitting, Application Air, Fitting Side A Connection Type BSPT, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Pipe Size 1/4 in, Fitting Side B Tube Outer Diameter 8 mm, Fitting Material Fiberglass-Reinforced Nylon, Fitting Thread Size 1/4 In., Material Grade Not Applicable, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Maximum Operating Pressure 10 barg, Maximum Operating Temperature 158 Degrees F, Overall Length 36 1/2 mm
