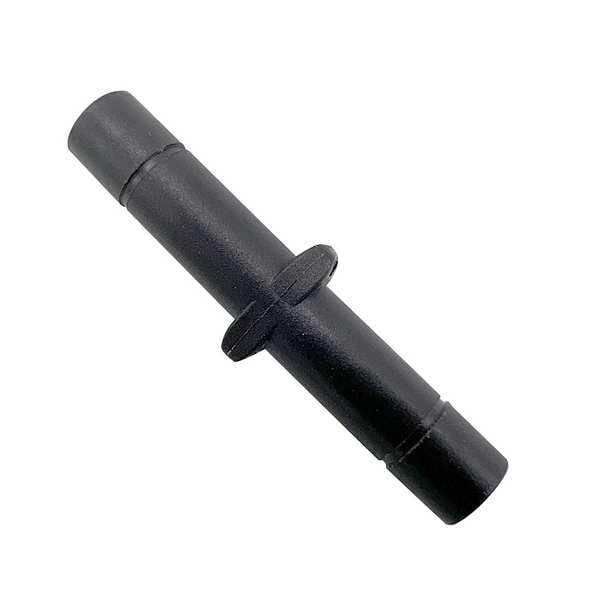

Metric Push-to-Connect Fitting, Polymer, Black
Mfr # 3120 08 00
Zoro # G504860008
product price:Â
$
2.49
/ea
Key Features
Specific Fitting Shape
Straight Connector
System of Measurement
Imperial
Overall Length
41 mm
Standards
2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743
Color
Black
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3120 08 00
- Zoro #
- G504860008
- UPC #
- -
- Country of Origin
- France
- Item
- Push-Fit Union Fitting
- Specific Fitting Shape
- Straight Connector
- System of Measurement
- Imperial
- Standards
- 2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743
- Color
- Black
- Application
- Air
- Compatible Tube Hardness
- 95 Shore A
- Fitting Shape
- Straight
- Compatible Tube Material
- Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon
- Maximum Operating Pressure
- 20 barg
- Fitting Side A Connection Type
- Push-to-Connect
- Vacuum Rating
- 755 mmHg
- Maximum Operating Temperature
- 176 Degrees F
- Minimum Operating Temperature
- -4 Degrees F
- Fitting Side B Connection Type
- Push-to-Connect
- Fitting Material
- Fiberglass-Reinforced Nylon
- Operating Temperature - Minimum
- -4 Degrees F
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Side 2 Connection Type
- Push-to-Connect
- Series
- Legris
- Operating Temperature - Maximum
- 176 Degrees F
- For Media Type
- Air
Description
Push-Fit Union Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 5/16 in, Fitting Side B Tube Outer Diameter 5/16 in, Fitting Material Fiberglass-Reinforced Nylon, Material Grade Not Applicable, Color Black, Maximum Operating Pressure 20 barg, Maximum Operating Temperature 176 Degrees F, Overall Length 41 mm, Specific Fitting Shape Straight Connector
