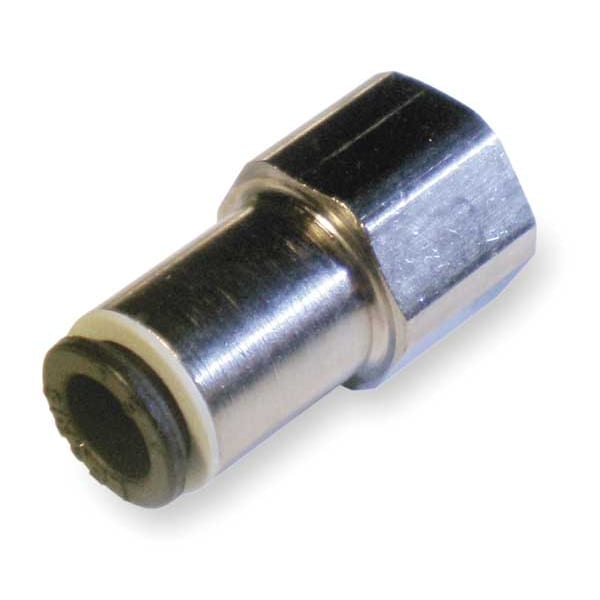

Push-Fit Adapter Fitting, 12mm Tube Size, Brass, Silver, 10 PK

  • Mfr # 3114 12 21

  • Zoro # G0255482

product price:
$
171.99
/pk of 10, $17.20/ea
Free Shipping & Returns

Key Features

Specific Fitting Shape
Straight Adapter
Tube Size
12mm
Pipe Size - Pipe Fitting
1/2 in
Max. Pressure
290 psi
Temp. Range
-4 Degrees to 175 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3114 12 21
Zoro #
G0255482
UPC #
820099224701
Country of Origin
France
Item
Push-Fit Adapter Fitting
Specific Fitting Shape
Straight Adapter
Max. Pressure
290 psi
Temp. Range
-4 Degrees to 175 Degrees F
Basic Material
Plastic/Metal Combination
Body Material
Glass Filled Nylon and Nickel Plated Brass
Connection Type
Push-to-Connect x FBSPP
Color
Silver
Fittings Sub-Category
Adapters
Application
Vacuum
System of Measurement
Imperial/Metric
Standards
2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743
Fitting Side B Connection Type
FBSPP
Compatible Tube Material
Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon
Minimum Operating Temperature
4 Degrees F
Maximum Operating Temperature
175 Degrees F
Vacuum Rating
28 inHg
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side A Connection Type
Push-to-Connect
Compatible Tube Hardness
95 Shore A
Release Type
Button
Maximum Operating Pressure
290 psi
Fitting Material
Brass
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Fitting Shape
Straight
Operating Temperature - Maximum
175 Degrees F
Series
Legris
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Minimum
4 Degrees F
Finish
Nickel-Plated
Fitting Side 2 Connection Type
FBSPP
Connector Type
Adapter
Operating Pressure - Maximum
290 psi
For Media Type
Air, Coolants, Gases

Description

Push-Fit Adapter Fitting, Application Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type FBSPP, Fitting Side B Pipe Size 1/2 in, Fitting Side A Tube Outer Diameter 12 mm, Fitting Material Brass, Fitting Thread Size Not Applicable, Material Grade Not Applicable, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 175 Degrees F, Overall Length 45 1/2 mm
