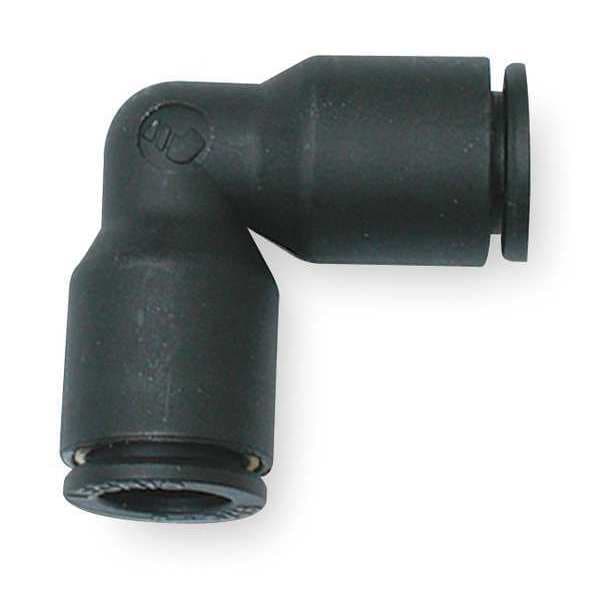

Push-Fit Elbow Fitting, 16mm Tube Size, Fiberglass-Reinforced Nylon, Black

  • Mfr # 3102 16 00

  • Zoro # G4406263

product price:
$
18.49
/ea

Key Features

Specific Fitting Shape
90 Degrees Elbow
Tube Size
16mm
Max. Pressure
290 psi
Basic Material
Plastic/Metal Combination
Pipe Size
16mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3102 16 00
Zoro #
G4406263
UPC #
820099994765
Country of Origin
France
Item
Push-Fit Elbow Fitting
Specific Fitting Shape
90 Degrees Elbow
Max. Pressure
290 psi
Basic Material
Plastic/Metal Combination
Color
Black
Fittings Sub-Category
Elbows
Temp. Range
-4 Degrees to 175 Degrees F
Body Material
Glass Filled Nylon and Nickel Plated Brass
Connection Type
Push-to-Connect x Push-to-Connect
Application
Air
System of Measurement
Metric
Standards
2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743
Minimum Operating Temperature
4 Degrees F
Fitting Side A Connection Type
Push-to-Connect
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Maximum Operating Pressure
290 psi
Maximum Operating Temperature
176 Degrees F
Vacuum Rating
28 inHg
Fitting Side B Connection Type
Push-to-Connect
Release Type
Button
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Material
Fiberglass-Reinforced Nylon
Fitting Shape
90 Degrees Elbow
Fitting Side 2 Connection Type
Push-to-Connect
For Media Type
Air
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Minimum
4 Degrees F
Operating Pressure - Maximum
290 psi
Operating Temperature - Maximum
175 Degrees F
Connector Type
Union
Series
Legris

Description

Push-Fit Elbow Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 16 mm, Fitting Side B Tube Outer Diameter 16 mm, Fitting Material Fiberglass-Reinforced Nylon, Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 176 Degrees F, Overall Length 52 mm
