  11. Push-Fit Elbow Fitting, 5/16 in Tube Size, Brass, Silver

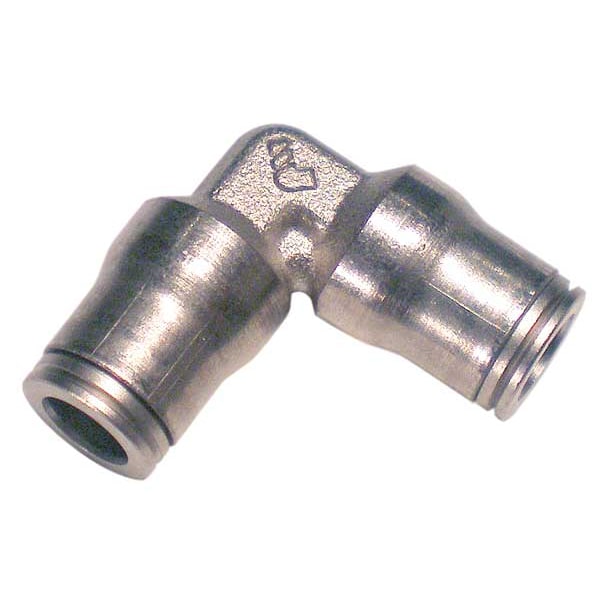

Legris Push-Fit Elbow Fitting, 5/16 in Tube Size, Brass, Silver 3602 08 00 - main

Push-Fit Elbow Fitting, 5/16 in Tube Size, Brass, Silver

  • Mfr # 3602 08 00

  • Zoro # G0901932

product price: $12.95
/ea

Key Features

Tube Fitting Material
Nickel Plated Brass
Specific Fitting Shape
90 Degrees Elbow
Fitting Connection Type
Tube
Tube Size
5/16 in
Max. Pressure
435 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3602 08 00
Zoro #
G0901932
UPC #
820099275819
Country of Origin
Spain

Dimensions

Tube Size
5/16 in
Overall Length
31 mm
Fitting Side A Tube Outer Diameter
8 mm
Fitting Side B Tube Outer Diameter
8 mm
Fitting Side 2 Tube Outer Diameter
8 mm
Fitting Side 1 Tube Outer Diameter
8 mm

Details

Item
Push-Fit Elbow Fitting
Tube Fitting Material
Nickel Plated Brass
Specific Fitting Shape
90 Degrees Elbow
Fitting Connection Type
Tube
Max. Pressure
435 psi
Temp. Range
-4 Degrees to 302 Degrees F
Basic Pipe Fitting Material
Metal
Basic Pipe Fitting Shape
Elbow
Specific Pipe Fitting Shape
90 Degree Elbow Union
Pipe Fitting Connection Type
Tube
Gasket Material
FKM
Color
Silver
Standards
2011/65/EC, ASTM B733-04, 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, 1907/2006 REACH, 1935/2004/EC, 21 CFR (FDA Approved), UL94 V-0, USDA NSF H1
Application
Lubrication
System of Measurement
Metric
Resistance Properties
Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant
Finish/Coating
Nickel Plated
Compatible Tube Material
Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel
Fitting Side A Connection Type
Push-to-Connect
Vacuum Rating
28 inHg
Compatible Tube Hardness
95 Shore A
Fitting Side B Connection Type
Push-to-Connect
Release Ring Material
FKM
Fitting Material
Brass
Minimum Operating Temperature
13 Degrees F
Maximum Operating Pressure
435 psi
Maximum Operating Temperature
302 Degrees F
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Shape
Elbow
For Media Type
Food, Detergents, Non-Potable Water, Oils, Gases
Operating Pressure - Maximum
435 psi
Operating Temperature - Minimum
13 Degrees F
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
Push-to-Connect
Operating Temperature - Maximum
302 Degrees F
Finish
Nickel-Plated
Connector Type
Union
Series
Legris
Material Grade
C36000

Description

Push-Fit Elbow Fitting, Application Lubrication, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 8 mm, Fitting Side B Tube Outer Diameter 8 mm, Fitting Material Brass, Material Grade C36000, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 435 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 31 mm

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
