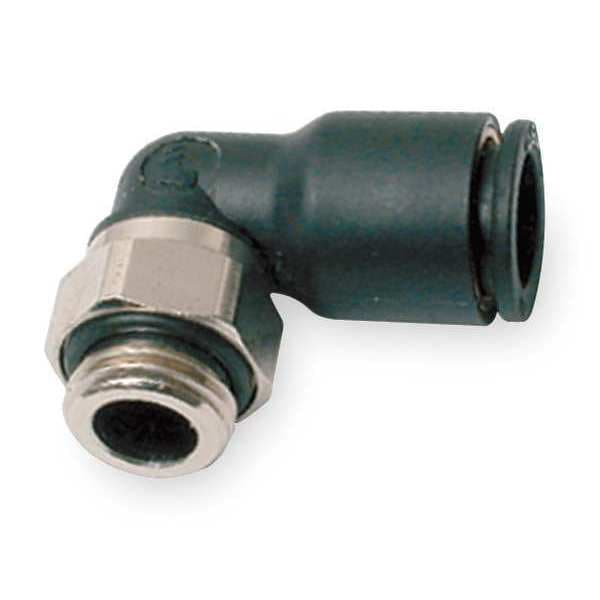

Push-Fit Elbow Fitting, 6mm Tube Size, Fiberglass-Reinforced Nylon, Black, 10 PK

  • Mfr # 3199 06 13

  • Zoro # G0839361

product price:
$
76.95
/pk 10, $7.70/ea

Key Features

Specific Fitting Shape
90 Degrees Elbow Adapter
Tube Size
6mm
Pipe Size - Pipe Fitting
1/4 in
Max. Pressure
290 psi
Connection Type
Push-to-Connect x MBSPP
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3199 06 13
Zoro #
G0839361
UPC #
820099258348
Country of Origin
France
Item
Push-Fit Elbow Fitting
Specific Fitting Shape
90 Degrees Elbow Adapter
Max. Pressure
290 psi
Connection Type
Push-to-Connect x MBSPP
Basic Material
Plastic/Metal Combination
Color
Black
Body Material
Glass Filled Nylon and Nickel Plated Brass
Fittings Sub-Category
Elbows
Temp. Range
-4 Degrees to 175 Degrees F
Application
Vacuum
Standards
2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743
System of Measurement
Imperial/Metric
Fitting Side B Connection Type
MBSPP
Maximum Operating Temperature
175 Degrees F
Compatible Tube Material
Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Vacuum Rating
28 inHg
Fitting Side A Connection Type
Push-to-Connect
Release Type
Button
Minimum Operating Temperature
4 Degrees F
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Compatible Tube Hardness
95 Shore A
Maximum Operating Pressure
290 psi
Fitting Material
Fiberglass-Reinforced Nylon
Fitting Shape
90 Degrees Elbow
Fitting Side 1 Connection Type
Push-to-Connect
Connector Type
Adapter
Operating Pressure - Maximum
290 psi
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
4 Degrees F
Series
Legris
For Media Type
Air, Coolants, Gases
Fitting Side 2 Connection Type
MBSPP

Description

Push-Fit Elbow Fitting, Application Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MBSPP, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 6 mm, Fitting Material Fiberglass-Reinforced Nylon, Fitting Thread Size Not Applicable, Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 175 Degrees F
