Shop LEGRIS

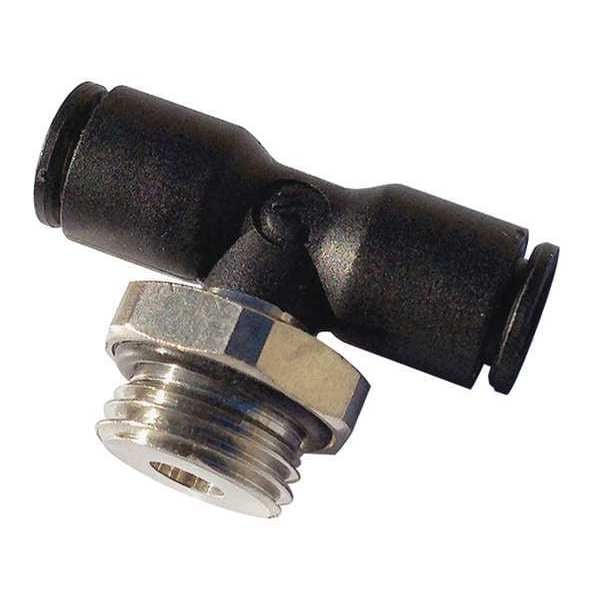

Push-Fit Tee Fitting, 5/32 in or 4mm Tube Size, Fiberglass-Reinforced Nylon, Black, 10 PK

  • Mfr # 3108 04 20

  • Zoro # G0657151

product price:
$
85.89
/pk of 10, $8.59/ea

Key Features

Specific Fitting Shape
Adapter Tee
Tube Size
5/32 in or 4mm
Pipe Size - Pipe Fitting
10-32
Max. Pressure
290 psi
Basic Material
Plastic/Metal Combination
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3108 04 20
Zoro #
G0657151
UPC #
820099217826
Country of Origin
France
Item
Push-Fit Tee Fitting
Specific Fitting Shape
Adapter Tee
Max. Pressure
290 psi
Basic Material
Plastic/Metal Combination
Fittings Sub-Category
Tees
Color
Black
Body Material
Glass Filled Nylon and Nickel Plated Brass
Connection Type
Push-to-Connect x Push-to-Connect x MUNF
Temp. Range
-4 Degrees to 175 Degrees F
Special Features
With Thread Sealant
System of Measurement
Imperial
Standards
ISO 14743, PED, REACH, RoHS
Application
Air, Cutting Fluids, Inert Gases
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Vacuum Rating
28 inHg
Fitting Side A Connection Type
Push-to-Connect
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Included
Release Type
Button
Release Ring Material
Nylon
Maximum Operating Temperature
175 Degrees F
Minimum Operating Temperature
4 Degrees F
Fitting Material
Fiberglass-Reinforced Nylon
Maximum Operating Pressure
290 psi
Compatible Tube Material
Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon
Fitting Side C Connection Type
MUNF
Fitting Side B Connection Type
Push-to-Connect
Fitting Shape
Tee
Fitting Side 1 Connection Type
Tube
Thread Sealant Type
Acrylic
Fitting Side 2 Connection Type
Tube
Operating Pressure - Maximum
290 psi
Connector Type
Adapter
For Media Type
Compressed Air, Coolants, Gases
Operating Temperature - Minimum
-4 Degrees F
Operating Temperature - Maximum
175 Degrees F
Fitting Features
Swivel
Fitting Side 3 Connection Type
MUNF

Description

Push-Fit Tee Fitting, Application Air, Cutting Fluids, Inert Gases, Color Black, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type MUNF, Material Grade Not Applicable, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Fitting Side A Tube Outer Diameter 5/32 in, Fitting Side B Tube Outer Diameter 5/32 in, Fitting Material Fiberglass-Reinforced Nylon, Maximum Operating Pressure 290 psi
