Shop LEGRIS

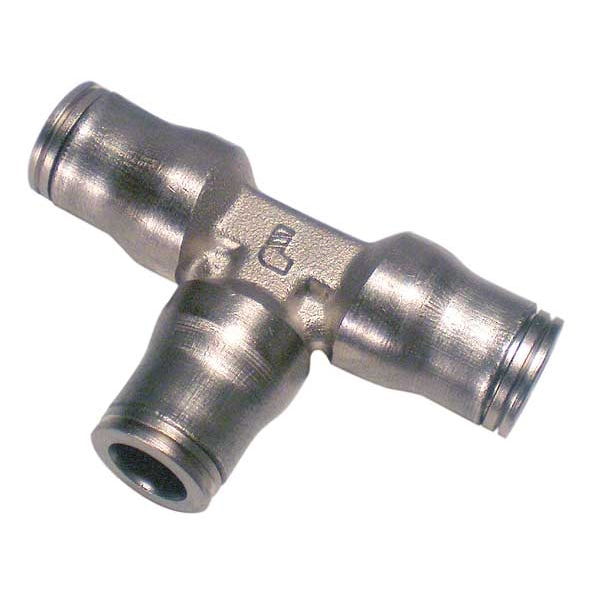

Push-Fit Tee Fitting, 6mm Tube Size, Brass, Silver

  • Mfr # 3604 06 00

  • Zoro # G1551164

product price:
$
17.45
/ea

Key Features

Tube Fitting Material
Nickel Plated Brass
Specific Fitting Shape
Tee
Fitting Connection Type
Tube
Tube Size
6mm
Max. Pressure
435 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3604 06 00
Zoro #
G1551164
UPC #
820099615400
Country of Origin
Spain

Dimensions

Tube Size
6mm
Overall Length
43 mm
Fitting Side B Tube Outer Diameter
6 mm
Fitting Side A Tube Outer Diameter
6 mm
Fitting Side C Tube Outer Diameter
6 mm
Fitting Side 1 Tube Outer Diameter
6 mm
Fitting Side 3 Tube Outer Diameter
6 mm
Fitting Side 2 Tube Outer Diameter
6 mm
Wire Rope Length
43 mm
Length
43 mm

Details

Item
Push-Fit Tee Fitting
Tube Fitting Material
Nickel Plated Brass
Specific Fitting Shape
Tee
Fitting Connection Type
Tube
Max. Pressure
435 psi
Specific Pipe Fitting Shape
Tee Union
Basic Pipe Fitting Material
Metal
Gasket Material
FKM
Basic Pipe Fitting Shape
Tee
Temp. Range
-4 Degrees to 302 Degrees F
Pipe Fitting Connection Type
Tube
System of Measurement
Metric
Standards
2011/65/EC, 2002/95/EC, 94/9/EC (ATEX), 97/23/EC (PED), ISO 14743, 1907/2006 (REACH), RG: 193, 21CFR (FDA Approved), UL 94 V-0
Color
Silver
Application
Food Processing, Harsh Detergents, Oils, Potable Water, Steam
Fitting Side A Connection Type
Push-to-Connect
Minimum Operating Temperature
13 Degrees F
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side C Connection Type
Push-to-Connect
Compatible Tube Material
Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel
Finish/Coating
Nickel Plated
Maximum Operating Temperature
302 Degrees F
Maximum Operating Pressure
435 psi
Resistance Properties
Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant
Fitting Material
Brass
Vacuum Rating
28 inHg
Fitting Side B Connection Type
Push-to-Connect
Fitting Shape
Tee
Fitting Features
Rigid
Fitting Side 2 Connection Type
Tube
Operating Pressure - Maximum
435 psi
Operating Temperature - Maximum
302 Degrees F
Fitting Side 3 Connection Type
Push-to-Connect
Finish
Nickel-Plated
Fitting Side 1 Connection Type
Tube
Operating Temperature - Minimum
13 Degrees F
Material Grade
C36000
Connector Type
Coupling
For Media Type
Food, Detergents, Oils, Potable Water, Gases

Description

Push-Fit Tee Fitting, Application Food Processing, Harsh Detergents, Oils, Potable Water, Steam, Color Silver, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Material Grade C36000, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Fitting Side A Tube Outer Diameter 6 mm, Fitting Side B Tube Outer Diameter 6 mm, Fitting Side C Tube Outer Diameter 6 mm, Fitting Material Brass
