Shop LEGRIS

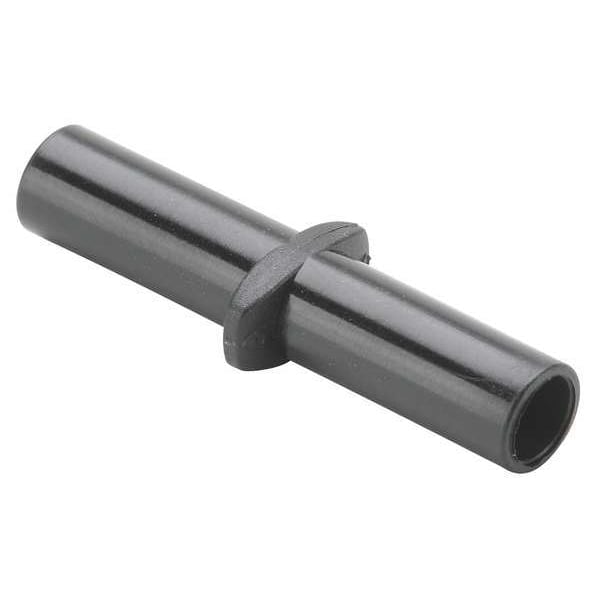

Push-Fit Union Fitting, Fiberglass-Reinforced Nylon, Black, 10 PK

  • Mfr # 3120 56 00

  • Zoro # G0412361

product price:
$
32.15
/pk of 10, $3.22/ea

Key Features

Specific Fitting Shape
Straight Connector
Pipe Size - Pipe Fitting
1/4 in
Stem OD
1/4 in
Max. Pressure
290 psi
Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3120 56 00
Zoro #
G0412361
UPC #
820099228532
Country of Origin
Mexico
Item
Push-Fit Union Fitting
Specific Fitting Shape
Straight Connector
Stem OD
1/4 in
Max. Pressure
290 psi
Color
Black
Connection Type
Tube Stem x Tube Stem
Temp. Range
-4 Degrees to 175 Degrees F
Special Features
With Thread Sealant
Basic Material
Plastic
Fittings Sub-Category
Unions
Body Material
Glass Filled Nylon
Standards
2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743
Application
Air
System of Measurement
Imperial
Release Type
Button
Maximum Operating Pressure
290 psi
Maximum Operating Temperature
176 Degrees F
Minimum Operating Temperature
4 Degrees F
Fitting Side B Connection Type
Tube Stem
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Fitting Material
Fiberglass-Reinforced Nylon
Vacuum Rating
28 inHg
Fitting Side A Connection Type
Tube Stem
Fitting Shape
Straight
For Media Type
Air
Operating Pressure - Maximum
290 psi
Connector Type
Union
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
Push-to-Connect
Operating Temperature - Minimum
4 Degrees F
Operating Temperature - Maximum
176 Degrees F
Series
Legris

Description

Push-Fit Union Fitting, Application Air, Fitting Side A Connection Type Tube Stem, Fitting Side B Connection Type Tube Stem, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Fitting Material Fiberglass-Reinforced Nylon, Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Not Applicable, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 176 Degrees F, Overall Length 1 17/32 in
