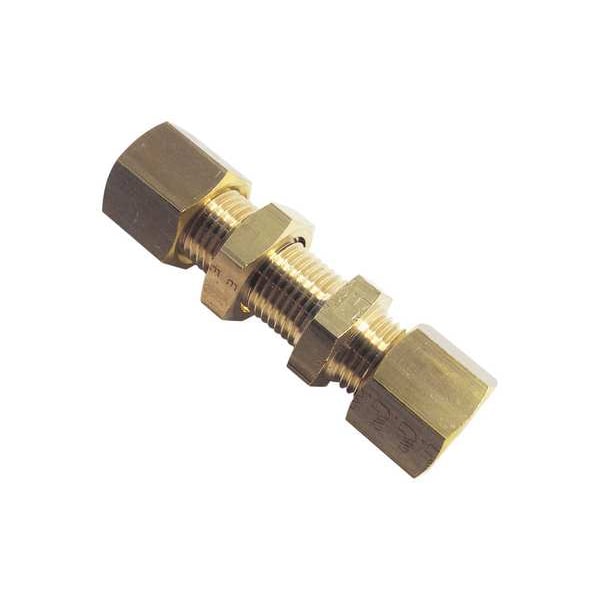

Strt, Brass, Comp. 12 mm, Comp. 15 mm
- Mfr # 0116 12 00
- Zoro # G904995072
product price:Â
$
29.79
/ea
Key Features
Specific Fitting Shape
Straight Connector
Hex Size
22 mm
Finish
Brass
Overall Length
2 9/32 in
Standards
CNOMO: E07.21.115N, DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), RG: 1907/2006 (REACH)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 0116 12 00
- Zoro #
- G904995072
- UPC #
- -
- Country of Origin
- Spain
Dimensions
- Hex Size
- 22 mm
- Overall Length
- 2 9/32 in
- Fitting Side B Tube Outer Diameter
- 12 mm
- Fitting Side A Tube Outer Diameter
- 12 mm
- Fitting Side 1 Tube Outer Diameter
- 12 mm
- Fitting Side 2 Tube Outer Diameter
- 12 mm
- Wire Rope Length
- 2 9/32 in
- Length
- 2 9/32 in
Description
Compression Fitting Adapter, Application Compression, Cooling, Fluid Transfer, Lubrication, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Brass, Fitting Side A Tube Outer Diameter 12 mm, Fitting Side B Tube Outer Diameter 12 mm, Material Grade CA360, Maximum Operating Pressure 797 psi, Maximum Operating Temperature 100 Degrees C, Overall Length 2 9/32 in, Specific Fitting Shape Straight Connector
