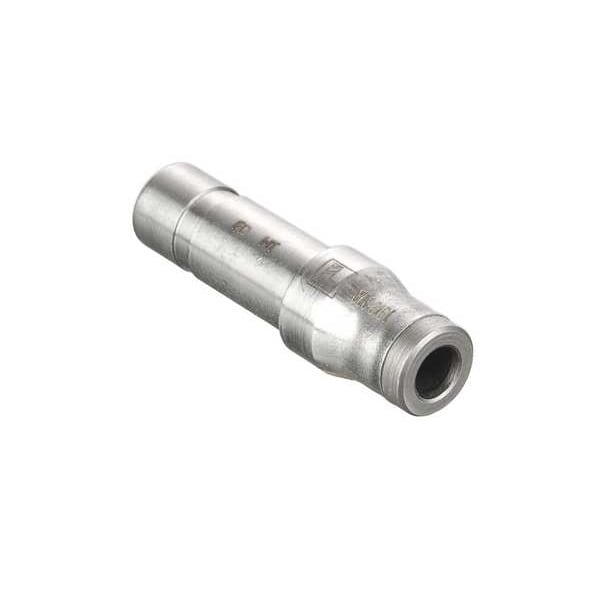

Shop LEGRIS

Strt, SS, Push-Fit 4 mm, Push-Fit 6 mm

  • Mfr # 3866 04 06

  • Zoro # G604850763

product price:
$
35.89
/ea

Key Features

Specific Fitting Shape
Reducer
Standards
2011/65/EC, 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, 1907/2006 REACH, 1935/2004/EC, 21 CFR (FDA Approved), UL94 V-0, USDA NSF H1
Compatible Tube Hardness
95 Shore A
Maximum Operating Temperature
302 Degrees F
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3866 04 06
Zoro #
G604850763
UPC #
-
Country of Origin
France
Item
Push-Fit Adapter Fitting
Specific Fitting Shape
Reducer
Standards
2011/65/EC, 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, 1907/2006 REACH, 1935/2004/EC, 21 CFR (FDA Approved), UL94 V-0, USDA NSF H1
Compatible Tube Hardness
95 Shore A
Maximum Operating Temperature
302 Degrees F
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Material Grade
316L
Fitting Side A Connection Type
Push-to-Connect
Fitting Material
Stainless Steel
System of Measurement
Metric
Application
Air, Beverage, Food Processing
Compatible Tube Material
Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel
Fitting Side B Connection Type
Push-to-Connect
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Maximum Operating Pressure
435 psi
Minimum Operating Temperature
-4 Degrees F
Fitting Shape
Straight
Color
Silver
Operating Pressure - Maximum
435 psi
For Media Type
Air, Beverages, Food
Connector Type
Reducer
Fitting Side 2 Connection Type
Push-to-Connect
Operating Temperature - Maximum
302 Degrees F
Series
Legris
Operating Temperature - Minimum
-4 Degrees F
Fitting Side 1 Connection Type
Push-to-Connect

Description

Push-Fit Adapter Fitting, Application Air, Beverage, Food Processing, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 4 mm, Fitting Side B Tube Outer Diameter 6 mm, Fitting Material Stainless Steel, Material Grade 316L, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 435 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 35 mm
