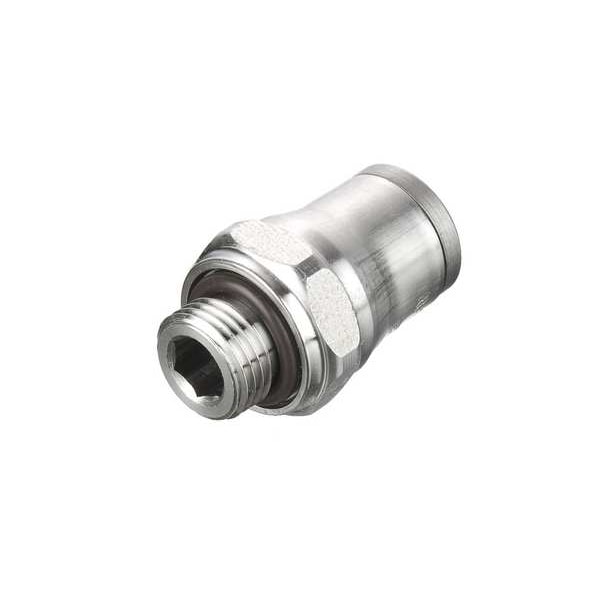

Stud, SS, BSPP 1/4 mm, Push-Fit 6 mm
Mfr # 3801 06 13
Zoro # G704850786
product price:Â
$
54.79
/ea
Key Features
Specific Fitting Shape
Straight Adapter
Standards
2011/65/EC, 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, 1907/2006 REACH, 1935/2004/EC, 21 CFR (FDA Approved), UL94 V-0, USDA NSF H1
System of Measurement
Metric
Material Grade
316L
Fitting Side A Connection Type
Push-to-Connect
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3801 06 13
- Zoro #
- G704850786
- UPC #
- -
- Country of Origin
- France
Dimensions
- Fitting Side A Pipe Size
- 6 mm
- Overall Length
- 18 mm
- Fitting Thread Size
- G1/4
- Fitting Side B Tube Outer Diameter
- 6 mm
- Fitting Side 2 Tube Outer Diameter
- 6 mm
- Fitting Side 1 Pipe Size
- 1/4 mm
- Wire Rope Length
- 18 mm
- Length
- 18 mm
Description
Push-Fit Adapter Fitting, Application Air, Beverage, Food Processing, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type BSPP, Fitting Side A Pipe Size 6 mm, Fitting Side B Tube Outer Diameter 6 mm, Fitting Material Stainless Steel, Fitting Thread Size G1/4, Material Grade 316L, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 435 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 18 mm
Restrictions
