This item is Discontinued.

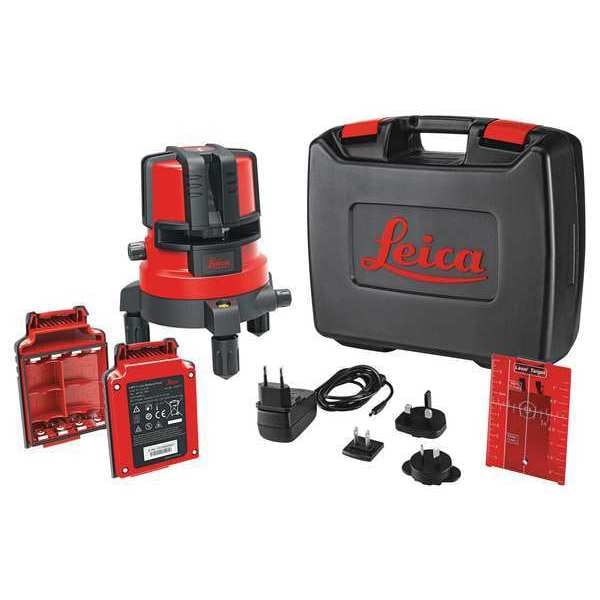

Leica Lino Multi Line Laser, Pendulum Self Leveling L4P1

Multi Line Laser, Pendulum Self Leveling (Discontinued)

  • Mfr # L4P1
  • Zoro # G3808071
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L4P1
Zoro #
G3808071
UPC #
07640110696040
Country of Origin
China

Dimensions

Height
6 3/8 in
Width
4 59/64 in
Length
4 59/64 in
Thread Size
1/4"-20, 5/8"-11
Overall Depth
4 15/16 in
Tripod Thread Size
1/4"-20, 5/8"-11
Overall Width
4 15/16 in
Overall Height
6 3/8 in

Details

Item
Line and Dot Laser Level
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
5
Number of Dots
1
Number of Lines
4
Laser Color
Red
Range w/o Detector
50 ft
Auto Shutoff
Yes
Total Number of Vials
4
Grade Capability
Single
Power Source
Li-Ion Rechargeable Batteries, (4)AA Alkaline Batteries
Number of Scanning Modes
0
Visual/Audible Indicators
Yes
Includes
Adapter, Target
IP Rating
IP54
Preset Angle
180 Degrees
Horizontal/Vertical
Horizontal and Vertical
Plumb Up
No
Interior/Exterior
Interior and Exterior
Accuracy
+/-0.0079 in @ 33 ft
Number of 45 Degree Vials
4
Laser Class
Class 2
Range w/Detector
260 ft
Auto Leveling Range
+/-3 Degrees
Slope
+/- 5 Degrees
Number of Plumb Vials
1
Beam Color
Red
Plumb Down
Yes
Number of Level Vials
1
Features
360 Degrees Rotation, Plumb Down Point, Tune Adjustability
Battery Type
AA, 20V Max
Material
Plastic
Self-Leveling Range
+/-3 Degrees
Preset Angles
180 Degrees
Operating Temperature - Minimum
14 Degrees F
Laser Beam Color
Red
Standards
ISO 9001
Automatic Shutoff
No
Operating Temperature - Maximum
122 Degrees F
Mount Type
Thumb Screw
Indoor Range - Maximum
262 ft
Working Range without Detector - Maximum
50 ft
Use Location
Indoor, Outdoor
Number of 45 Vials
4
Laser Output
1 mW
Working Range with Detector - Maximum
260 ft
Plumb Direction
Plumb Down
Includes Batteries
Batteries Included
Bluetooth
Not Bluetooth Compatible
Outdoor Range - Maximum
262 ft
Level Indicators
Audible, Visual
Number of Planes
0
Weight
2.59 lb

Description

This Leica Lino Laser Level is an excellent tool for any project. It can be used in both interior and exterior spaces, making it versatile and reliable. The rotating laser level can produce 360 degrees of rotation, allowing you to use it in various applications. With a vertical line feature, the level ensures accuracy with its +/-1/32" at 16 ft capability. This red laser level has a 6 3/8" height and 4 59/64" length. It runs on rechargeable Li-Ion batteries or alkaline AA batteries. The Leica Lino Laser Level will help you complete your next project with ease.

Restrictions

Hazardous material
