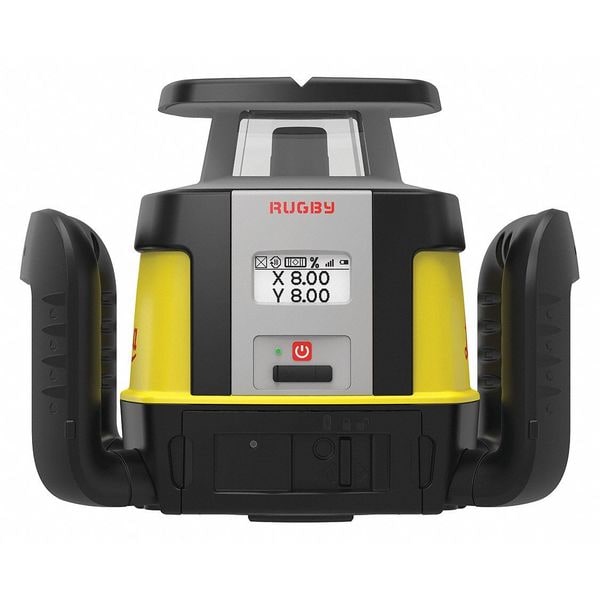

Rotary Laser, Exterior, Horizontal

  • Mfr # Rugby CLH with CLX200

  • Zoro # G9462868


product price: $2,719.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Rugby CLH with CLX200
Zoro #
G9462868
UPC #
-
Country of Origin
China

Dimensions

Length
8 5/16 in
Thread Size
5/8"-11
Width
11 45/64 in
Height
9 7/64 in
Overall Depth
8 5/16 in
Tripod Thread Size
5/8"-11
Overall Height
9 1/8 in
Overall Width
11 11/16 in

Details

Item
Rotary Laser
Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
Number of Lines
0
Laser Color
Red
Range w/o Detector
100 ft
Rotating Speed
20 RPM
Total Number of Vials
0
Includes
Case, Cable
Plumb Up
No
Laser Class
Class 1
Number of Scanning Modes
2
Auto Leveling Range
+/-6 Degrees
Range w/Detector
4,430 ft
Preset Angle
None
Visual/Audible Indicators
Yes
Number of 45 Degree Vials
0
Accuracy
+/-1/16 in @ 100 ft
Auto Shutoff
Yes
Power Source
Li-Ion Rechargeable Battery Pack
Number of Level Vials
0
Grade Capability
Single
Plumb Down
No
Number of Plumb Vials
0
IP Rating
IP68
Features
Concrete and Formwork Levelling, Height Checking, Land Levelling
Slope
+/- 8 Degrees
Material
Plastic
Battery Type
Li-Ion
Number of 45 Vials
0
Mount Type
Thumb Screw
Plumb Direction
Plumb Up
Outdoor Range - Maximum
4,429 ft
Automatic Shutoff
Yes
Preset Angles
180 Degrees
Includes Batteries
Batteries Included
Working Range with Detector - Maximum
4,430 ft
Self-Leveling Range
+/-6 Degrees
Laser Beam Color
Red
Number of Planes
0
Standards
ISO 9001
Indoor Range - Maximum
4,429 ft
Weight
8.3 lb
Level Indicators
Audible, Visual
Laser Output
0.6 mW / 3.5 mW Pulse duration (effective) 500 ms / 1.4 ms, 2
Use Location
Outdoor
Bluetooth
Not Bluetooth Compatible
Operating Temperature - Minimum
-4 Degrees F
Operating Temperature - Maximum
122 Degrees F
Working Range without Detector - Maximum
100 ft

Description

Rotary Laser, Accuracy +/-1/16 in @ 100 ft, Battery Type Li-Ion, Bluetooth Not Bluetooth Compatible, Features Concrete and Formwork Levelling, Height Checking, Land Levelling, Includes Case, Cable, Number of Beams 1, Number of Planes 0, Number of Dots 0, Number of Lines 0, Working Range with Detector - Maximum 4,430 ft, Working Range without Detector - Maximum 100 ft, Mount Type Thumb Screw, Includes Batteries Batteries Included, Leveling Type Electronic Self-Leveling
