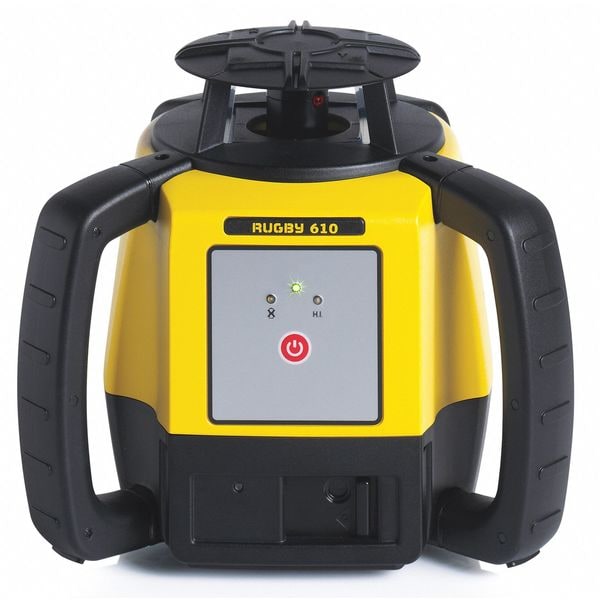

Leica Rugby Rotary Laser Kit, Exterior Usage Rugby 610 - main

Rotary Laser Kit, Exterior Usage

  • Mfr # Rugby 610

  • Zoro # G5070438

product price:  $1,085.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Rugby 610
Zoro #
G5070438
UPC #
-
Country of Origin
China

Dimensions

Length
8 in
Width
8 in
Height
8 in
Thread Size
5/8 in
Tripod Thread Size
5/8"-11
Overall Depth
8 in
Overall Height
8 in
Overall Width
8 in

Details

Item
Rotary Laser Kit
Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
Number of Lines
0
Laser Color
Red
Range w/o Detector
2,600 ft
Plumb Down
No
Laser Class
Class 1
Rotating Speed
10 RPM
Accuracy
+/-3/32 in @ 100 ft
Preset Angle
None
Plumb Up
No
Includes
Bracket, Case, Rod Eye 120
IP Rating
IP67
Number of Plumb Vials
0
Total Number of Vials
0
Features
Detect the Laser Beam in any Conditions and at any Distances with the Leica Rod Eye Receiver Range - from a Convenient Offset Reading with Rod Eye 120G/120 to Working at Long Distances with Rod Eye 140/160, Rugby 640G Provides Outstanding Visibility for Indoor and Outdoor Applications with New Green Beam Laser Technology, Rugby 680 Provides a Semi Automatic Grade Capability in Both Axis upto 8%, Setting Foundations and Footings has Never Been More Efficient. the Rugby 600 Series is Fit for any Interior and Exterior Levelling, Aligning and Squaring Application - Concrete Forming, Pad Placement and Framework Levelling
Power Source
(2) AA Batteries, (4) D Cell, Li-Ion Battery
Number of Scanning Modes
0
Number of Level Vials
0
Range w/Detector
2,600 ft
Auto Leveling Range
+/-5 Degrees
Number of 45 Degree Vials
0
Auto Shutoff
Yes
Visual/Audible Indicators
Yes
Material
Plastic
Battery Type
Alkaline, 20V Max
Mount Type
Thumb Screw
Self-Leveling Range
+/-5 Degrees
Number of 45 Vials
0
Automatic Shutoff
Yes
Includes Batteries
Batteries Included
Outdoor Range - Maximum
2,600 ft
Working Range without Detector - Maximum
2,600 ft
Operating Temperature - Maximum
122 Degrees F
Laser Beam Color
Red
Indoor Range - Maximum
2,600 ft
Number of Planes
0
Weight
7.1 lb
Laser Output
2.7 mW +/- 5%
Standards
ISO 9001
Use Location
Outdoor
Operating Temperature - Minimum
-4 Degrees F
Level Indicators
Audible, Visual
Bluetooth
Not Bluetooth Compatible
Working Range with Detector - Maximum
2,600 ft
Preset Angles
180 Degrees

Description

Rotary Laser Kit, Accuracy +/-3/32 in @ 100 ft, Battery Type Alkaline, 20V Max, Bluetooth Not Bluetooth Compatible

Restrictions

Hazardous material
