Leica Rugby Rotary Laser Kit, Exterior Usage Rugby 620 - main

Rotary Laser Kit, Exterior Usage

  • Mfr # Rugby 620

  • Zoro # G5070471

product price: $1,459.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Rugby 620
Zoro #
G5070471
UPC #
-
Country of Origin
China

Dimensions

Thread Size
5/8 in
Length
8 in
Height
8 in
Width
8 in
Overall Depth
8 in
Overall Height
8 in
Overall Width
8 in
Tripod Thread Size
5/8"-11

Details

Item
Rotary Laser Kit
Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
Number of Lines
0
Laser Color
Red
Range w/o Detector
2,600 ft
Number of Level Vials
0
Range w/Detector
2,600 ft
Total Number of Vials
0
Accuracy
+/-3/32 in @ 100 ft
Plumb Up
No
Visual/Audible Indicators
Yes
IP Rating
IP67
Rotating Speed
10 RPM
Grade Capability
Single
Power Source
(2) AA Batteries, (4) D Cell, Li-Ion Battery
Number of Plumb Vials
0
Laser Class
Class 1
Plumb Down
No
Slope
+/- 8 Degrees
Preset Angle
None
Number of 45 Degree Vials
0
Auto Leveling Range
+/-5 Degrees
Includes
Bracket, Case, Rod Eye 120
Number of Scanning Modes
0
Auto Shutoff
Yes
Features
Detect the Laser Beam in any Conditions and at any Distances with the Leica Rod Eye Receiver Range - from a Convenient Offset Reading with Rod Eye 120G/120 to Working at Long Distances with Rod Eye 140/160, Rugby 640G Provides Outstanding Visibility for Indoor and Outdoor Applications with New Green Beam Laser Technology, Rugby 680 Provides a Semi Automatic Grade Capability in Both Axis upto 8%, Setting Foundations and Footings has Never Been More Efficient. the Rugby 600 Series is Fit for any Interior and Exterior Levelling, Aligning and Squaring Application - Concrete Forming, Pad Placement and Framework Levelling
Battery Type
Alkaline, 20V Max
Material
Plastic
Preset Angles
180 Degrees
Use Location
Outdoor
Mount Type
Thumb Screw
Automatic Shutoff
Yes
Working Range with Detector - Maximum
2,600 ft
Operating Temperature - Maximum
122 Degrees F
Number of Planes
0
Level Indicators
Audible, Visual
Indoor Range - Maximum
2,600 ft
Operating Temperature - Minimum
-4 Degrees F
Working Range without Detector - Maximum
2,600 ft
Includes Batteries
Batteries Included
Bluetooth
Not Bluetooth Compatible
Outdoor Range - Maximum
2,600 ft
Laser Beam Color
Red
Standards
ISO 9001
Weight
7.1 lb
Laser Output
2.7 mW +/- 5%
Number of 45 Vials
0
Self-Leveling Range
+/-5 Degrees

Description

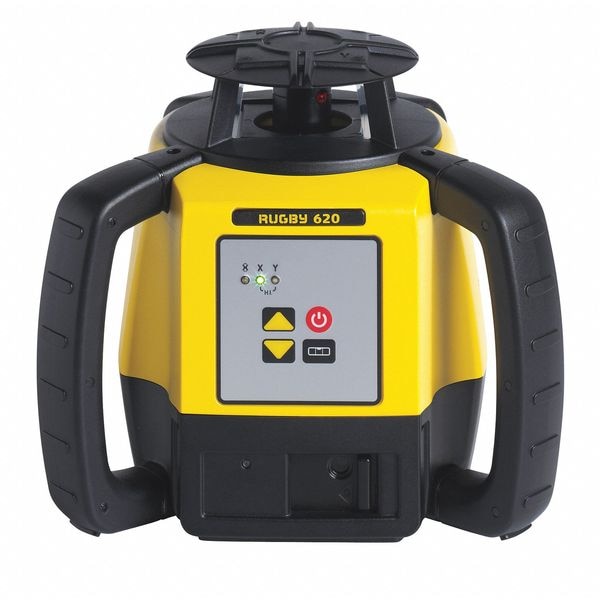

The Leica Rugby 620 Rotary Laser Kit is an exterior laser level that gives you maximum flexibility and efficiency. This kit contains a red rotating laser with a class of 111a, which makes it suitable for outdoor use. It has an accuracy of +/-3/32 in at 100 ft. The length and height are 8 in., while the weight is 1 lb 4 oz. The kit includes 2 AA batteries, 4 D cell batteries and a Li-Ion battery as power sources. There are automatic self-leveling features to ensure the tool maintains the desired horizontal plane during operation. Whether you need to complete indoor or outdoor projects quickly and accurately, then this Leica Rugby 620 Rotary Laser Kit will help you do just that.
