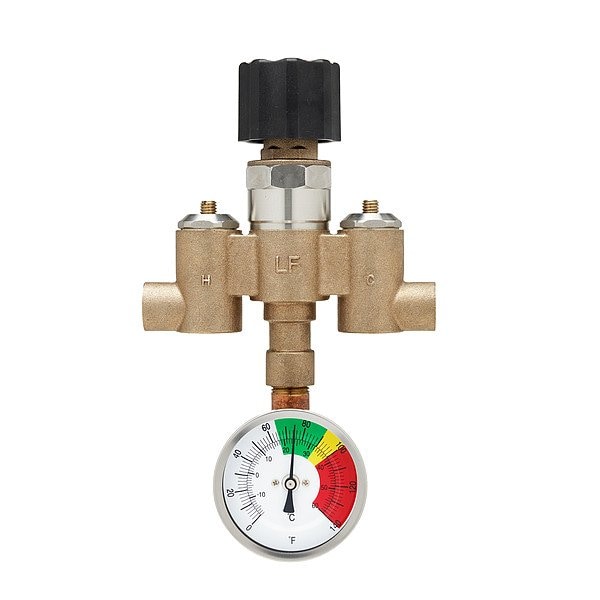

Emergency Eye Wash Valve, 1/2 in Inlet

  • Mfr # EXL-300-LF
  • Zoro # G908538848
product price:
$
649.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1/2 in
Outlet Type
Threaded
Flow Rate
7 gpm
Inlet Type
Threaded
Standards
ANSI Z358.1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EXL-300-LF
Zoro #
G908538848
UPC #
-
Country of Origin
United States
Item
Thermostatic Mixing Valve
Outlet Type
Threaded
Flow Rate
7 gpm
Inlet Type
Threaded
Standards
ANSI Z358.1
Compliance
ASSE 1071 Certified, CSA Certified, CUS
Includes
Check-stops, Dial Thermometer, Thermostatic Water Mixing Valve
Valve Type
Thermostatic
Temp. Range
0 Degrees to 140 Degrees F
For Use With
Eye or Eye/Face Wash
Max. Pressure
125 psi
Body Material
Brass
Inlet Connection Type - Hot
NPT
Inlet Connection Type - Cold
NPT
Operating Temperature - Minimum Outlet
0 Degrees F
Seal Material
NBR
Inlet Temperature - Maximum Cold
65 Degrees F
Operating Pressure - Minimum
30 psi
Operating Pressure - Maximum
125 psi
Outlet Connection Type
NPT
Inlet Temperature - Maximum Hot
180 Degrees F
Operating Temperature - Maximum Outlet
140 Degrees F
For Media
Hot Water, Water
Inlet Temperature - Minimum Cold
40 Degrees F
Includes Temperature Gauge
Temperature Gauge Included
Inlet Temperature - Minimum Hot
120 Degrees F

Dimensions

Inlet Size
1/2 in
Overall Length
6 1/4 in
Overall Height
10 1/4 in
Outlet Size
1/2 in
Inlet Connection Size - Cold
1/2 in
Inlet Connection Size - Hot
1/2 in
Outlet Connection Size
1/2 in
Wire Rope Length
6 1/4 in
Length
6 1/4 in

Description

Thermostatic Mixing Valve, Body Material Brass, Flow Rate 7 gpm, Inlet Type Threaded, Outlet Type Threaded, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 0 Degrees to 140 Degrees F, Max. Pressure 125 psi, Overall Height 10 1/4 in, For Use With Eye or Eye/Face Wash, Includes Check-stops, Dial Thermometer, Thermostatic Water Mixing Valve, Standards ANSI Z358.1, Compliance ASSE 1071 Certified, CSA Certified, CUS

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
