Shop LEONARD VALVE

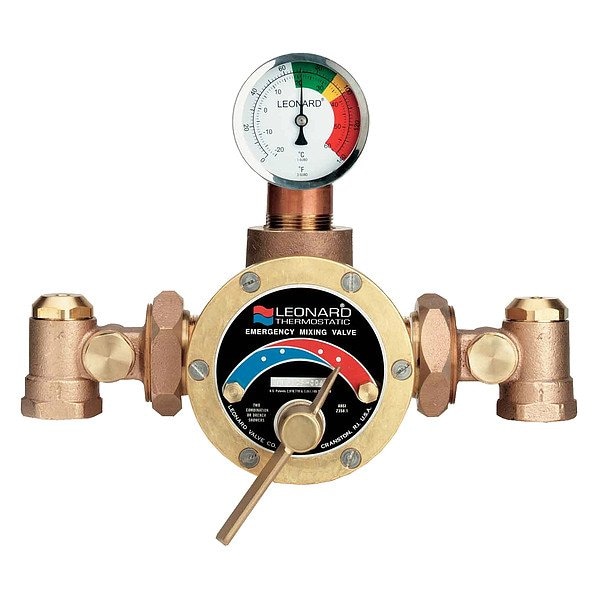

Emergency Mixing Valve, 1 1/4 in Inlet

  • Mfr # TM-5100-LF
  • Zoro # G408619566
product price:
$
1,801.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1 1/4 in
Flow Rate
40 gpm
Inlet Type
Union
For Use With
Multiple Drench Shower Valve
Overall Height
9 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TM-5100-LF
Zoro #
G408619566
UPC #
-
Country of Origin
United States
Item
Thermostatic Mixing Valve
Flow Rate
40 gpm
Inlet Type
Union
For Use With
Multiple Drench Shower Valve
Max. Pressure
30 psi
Body Material
Bronze
Temp. Range
0 Degrees to 140 Degrees F
Includes
Dial Thermometer, Integral Wall Support, Union Angle Check-stops
Standards
ANSI/ISEA Z358.1-2014, ASSE 1071
Compliance
ANSI Z358.1
Valve Type
Thermostatic
Operating Pressure - Maximum
30 psi
For Media
Hot Water, Water
Inlet Temperature - Maximum Cold
65 Degrees F
Operating Temperature - Maximum Outlet
140 Degrees F
Outlet Connection Type
NPT
Inlet Temperature - Maximum Hot
180 Degrees F
Includes Temperature Gauge
Temperature Gauge Included
Inlet Temperature - Minimum Cold
40 Degrees F
Inlet Connection Type - Cold
Union
Inlet Connection Type - Hot
Union
Inlet Temperature - Minimum Hot
120 Degrees F
Seal Material
NBR
Operating Pressure - Minimum
30 psi
Operating Temperature - Minimum Outlet
0 Degrees F

Description

Thermostatic Mixing Valve, Body Material Bronze, Flow Rate 40 gpm, Inlet Type Union, Inlet Size 1 1/4 in, Outlet Size 1 1/2 in, Temp. Range 0 Degrees to 140 Degrees F, Max. Pressure 30 psi, Overall Height 9 in, Overall Width 15 in, For Use With Multiple Drench Shower Valve, Includes Dial Thermometer, Integral Wall Support, Union Angle Check-stops, Standards ANSI/ISEA Z358.1-2014, ASSE 1071, Compliance ANSI Z358.1
