  11. Emergency Shower Valve, 1 in Inlet

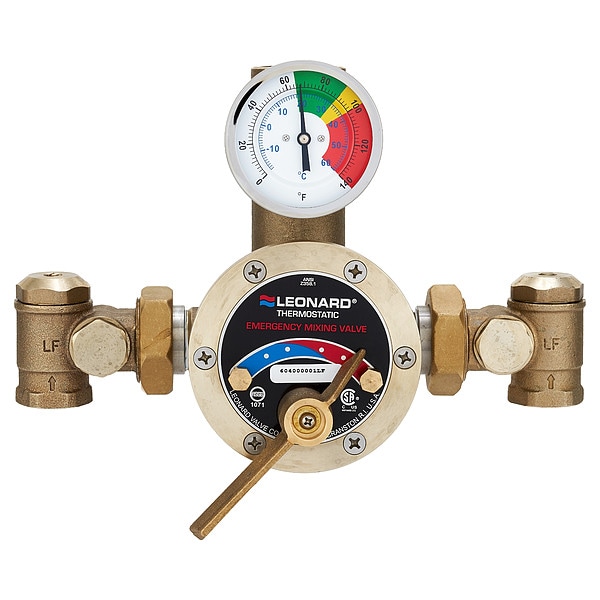

Leonard Valve Emergency Shower Valve, 1 in Inlet 6040-LF - main

Emergency Shower Valve, 1 in Inlet

  • Mfr # 6040-LF

  • Zoro # G508538873

product price: $1,172.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1 in
Flow Rate
20 gpm
Inlet Type
Union
Compliance
ANSI Z358.1
Max. Pressure
125 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6040-LF
Zoro #
G508538873
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1 in
Outlet Size
1 1/4 in
Inlet Connection Size - Hot
1 in
Outlet Connection Size
1 1/4 in
Inlet Connection Size - Cold
1 in

Details

Item
Thermostatic Mixing Valve
Flow Rate
20 gpm
Inlet Type
Union
Compliance
ANSI Z358.1
Max. Pressure
125 psi
Valve Type
Thermostatic
Includes
Dial Thermometer, Thermostatic Water Mixing Valve, Union Angle Check-stops, Wall Mounting Bracket
For Use With
Drench or Combination Emergency Shower
Body Material
Bronze
Temp. Range
0 Degrees to 140 Degrees F
Standards
ASSE 1071, CSA, CUS
Includes Temperature Gauge
Temperature Gauge Included
Outlet Connection Type
Sweat
Operating Temperature - Maximum Outlet
140 Degrees F
Inlet Temperature - Maximum Cold
65 Degrees F
Seal Material
NBR
Inlet Connection Type - Hot
Union
Inlet Temperature - Minimum Cold
40 Degrees F
Inlet Temperature - Maximum Hot
180 Degrees F
Inlet Connection Type - Cold
Union
Operating Pressure - Maximum
125 psi
Inlet Temperature - Minimum Hot
120 Degrees F
For Media
Hot Water, Water
Operating Temperature - Minimum Outlet
0 Degrees F
Operating Pressure - Minimum
30 psi

Description

Thermostatic Mixing Valve, Body Material Bronze, Flow Rate 20 gpm, Inlet Type Union, Inlet Size 1 in, Outlet Size 1 1/4 in, Temp. Range 0 Degrees to 140 Degrees F, Max. Pressure 125 psi, For Use With Drench or Combination Emergency Shower, Includes Dial Thermometer, Thermostatic Water Mixing Valve, Union Angle Check-stops, Wall Mounting Bracket, Standards ASSE 1071, CSA, CUS, Compliance ANSI Z358.1
