Shop LEONARD VALVE

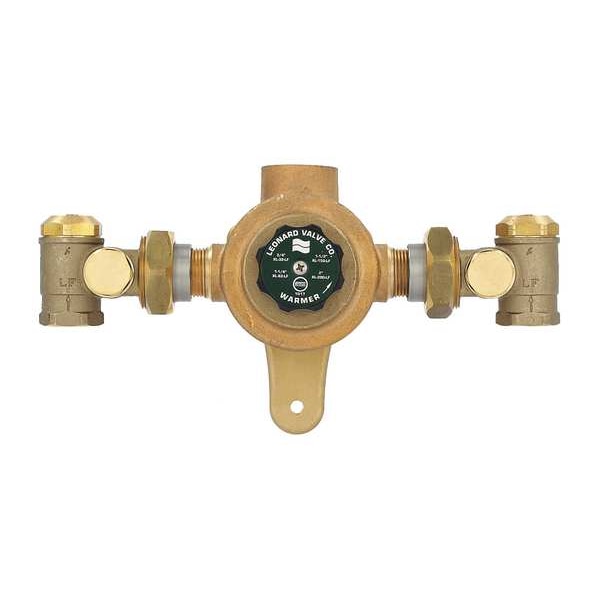

Mixing Valve, Lead Free Bronze, 43 gpm

  • Mfr # LV-982-LF-RF
  • Zoro # G8123333
product price:
$
1,468.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1 in
Outlet Type
NPT
Flow Rate
3 to 63 gpm
Inlet Type
NPT
Overall Width
6 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LV-982-LF-RF
Zoro #
G8123333
UPC #
-
Country of Origin
United States
Item
Thermostatic Mixing Valve
Outlet Type
NPT
Flow Rate
3 to 63 gpm
Inlet Type
NPT
Includes
Check-stops with Strainer
Temp. Range
90 Degrees to 140 Degrees F
Inlet Temperature (Cold)
40 Degrees to 85 Degrees F
For Use With
Domestic Hot Water Applications
Inlet Temperature (Hot)
120 Degrees to 200 Degrees F
Standards
ASSE 1017
Max. Pressure
125 psi
Compliance
Lead Free
Body Material
Copper
Valve Type
Thermostatic
Inlet Connection Type - Cold
NPT
Inlet Temperature - Maximum Cold
85 Degrees F
Inlet Temperature - Maximum Hot
200 Degrees F
Operating Pressure - Maximum
125 psi
Operating Temperature - Minimum Outlet
90 Degrees F
Inlet Temperature - Minimum Hot
120 Degrees F
For Media
Water
Operating Temperature - Maximum Outlet
140 Degrees F
Inlet Temperature - Minimum Cold
40 Degrees F
Operating Pressure - Minimum
30 psi
Includes Temperature Gauge
Temperature Gauge Not Included
Outlet Connection Type
NPT
Seal Material
NBR
Inlet Connection Type - Hot
NPT

Description

Thermostatic Mixing Valve, Body Material Copper, Flow Rate 3 to 63 gpm, Inlet Type NPT, Outlet Type NPT, Inlet Size 1 in, Outlet Size 1 1/4 in, Temp. Range 90 Degrees to 140 Degrees F, Max. Pressure 125 psi, Overall Height 7 in, Overall Width 6 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 120 Degrees to 200 Degrees F, For Use With Domestic Hot Water Applications, Includes Check-stops with Strainer, Standards ASSE 1017, Compliance Lead Free
