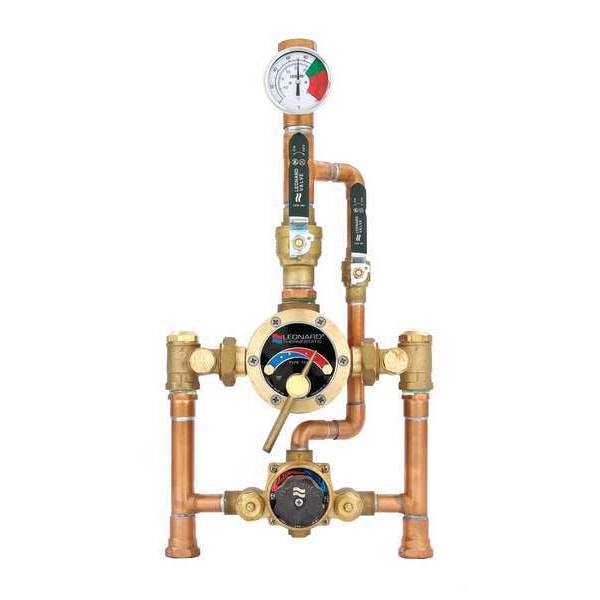

Mixing Valve, Lead Free Bronze, 63 gpm

  • Mfr # TM-920B-LF-DT-RF
  • Zoro # G8293144
product price:
$
4,507.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1 1/4 in
Outlet Type
NPT
Flow Rate
1 to 103 gpm
Inlet Type
NPT
Inlet Temperature (Cold)
40 Degrees to 85 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TM-920B-LF-DT-RF
Zoro #
G8293144
UPC #
-
Country of Origin
United States
Item
Thermostatic Mixing Valve
Outlet Type
NPT
Flow Rate
1 to 103 gpm
Inlet Type
NPT
Inlet Temperature (Cold)
40 Degrees to 85 Degrees F
Standards
ASSE 1017
Body Material
Bronze
Max. Pressure
125 psi
For Use With
Domestic Hot Water Applications
Compliance
Lead Free
Temp. Range
60 Degrees to 200 Degrees F
Inlet Temperature (Hot)
120 Degrees to 200 Degrees F
Includes
Adjustable Limit Stops Set, Color Coded Dial, Color Coded Dial Thermometer, Inlet Piping Manifold, Integral Hot and Cold Supply Check-stops, Locking Temperature Regulating Handles, Outlet Ball Valve Shutoffs
Valve Type
Thermostatic
Outlet Connection Type
NPT
Operating Temperature - Maximum Outlet
200 Degrees F
Inlet Connection Type - Cold
NPT
Inlet Temperature - Maximum Hot
200 Degrees F
Operating Pressure - Maximum
125 psi
Inlet Connection Type - Hot
NPT
Includes Temperature Gauge
Temperature Gauge Included
Operating Pressure - Minimum
30 psi
Seal Material
NBR
Inlet Temperature - Minimum Hot
120 Degrees F
For Media
Water
Inlet Temperature - Maximum Cold
85 Degrees F
Inlet Temperature - Minimum Cold
40 Degrees F
Operating Temperature - Minimum Outlet
60 Degrees F

Dimensions

Inlet Size
1 1/4 in
Outlet Size
1 1/4 in
Overall Width
10 in
Overall Height
23 in
Overall Length
15 in
Outlet Connection Size
1 1/4 in
Inlet Connection Size - Hot
1 1/4 in
Inlet Connection Size - Cold
1 1/4 in
Wire Rope Length
15 in
Length
15 in

Description

Thermostatic Mixing Valve, Body Material Bronze, Flow Rate 1 to 103 gpm, Inlet Type NPT, Outlet Type NPT, Inlet Size 1 1/4 in, Outlet Size 1 1/4 in, Temp. Range 60 Degrees to 200 Degrees F, Max. Pressure 125 psi, Overall Height 23 in, Overall Width 10 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 120 Degrees to 200 Degrees F, For Use With Domestic Hot Water Applications
