Shop LEONARD VALVE

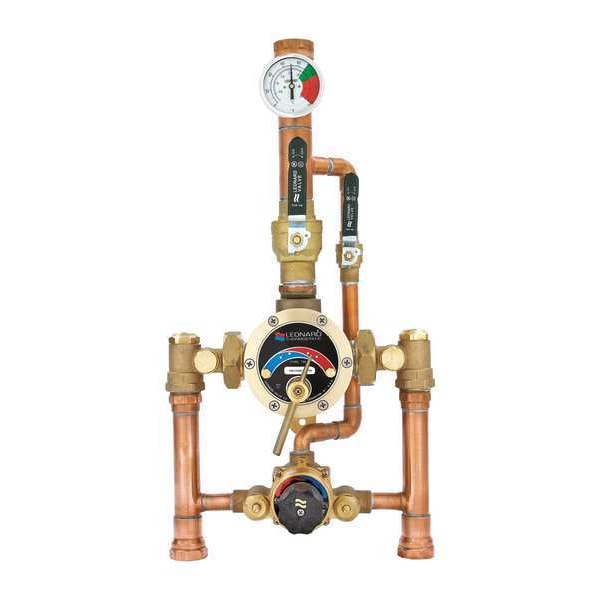

Mixing Valve, Lead Free Bronze, 95 gpm

  • Mfr # TM-1520B-LF-DT-RF

  • Zoro # G7971914

product price:
$
5,128.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1 1/4 in
Outlet Type
NPT
Flow Rate
1 to 158 gpm
Inlet Type
NPT
Overall Height
25 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TM-1520B-LF-DT-RF
Zoro #
G7971914
UPC #
-
Country of Origin
United States
Item
Thermostatic Mixing Valve
Outlet Type
NPT
Flow Rate
1 to 158 gpm
Inlet Type
NPT
Standards
ASSE 1017
Temp. Range
60 Degrees to 200 Degrees F
Compliance
Lead Free
Inlet Temperature (Hot)
120 Degrees to 200 Degrees F
Body Material
Bronze
Includes
Adjustable Limit Stops Set, Color Coded Dial, Color Coded Dial Thermometer, Inlet Piping Manifold, Integral Hot and Cold Supply Check-stops, Locking Temperature Regulating Handles, Outlet Ball Valve Shutoffs
Max. Pressure
125 psi
Inlet Temperature (Cold)
40 Degrees to 85 Degrees F
For Use With
Domestic Hot Water Applications
Valve Type
Thermostatic
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Temperature - Minimum Cold
40 Degrees F
Operating Temperature - Minimum Outlet
60 Degrees F
Inlet Connection Type - Hot
NPT
Inlet Temperature - Maximum Cold
85 Degrees F
For Media
Water
Outlet Connection Type
NPT
Seal Material
NBR
Includes Temperature Gauge
Temperature Gauge Included
Operating Pressure - Minimum
30 psi
Inlet Connection Type - Cold
NPT
Inlet Temperature - Maximum Hot
200 Degrees F
Operating Pressure - Maximum
125 psi
Operating Temperature - Maximum Outlet
200 Degrees F

Description

Thermostatic Mixing Valve, Body Material Bronze, Flow Rate 1 to 158 gpm, Inlet Type NPT, Outlet Type NPT, Inlet Size 1 1/4 in, Outlet Size 1 1/2 in, Temp. Range 60 Degrees to 200 Degrees F, Max. Pressure 125 psi, Overall Height 25 in, Overall Width 10 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 120 Degrees to 200 Degrees F, For Use With Domestic Hot Water Applications
