  5. 1-Port Mod Jack 110 8W8P Utp, T568A/B Cat5E Quickport, Gigamax Green

This item is Discontinued.

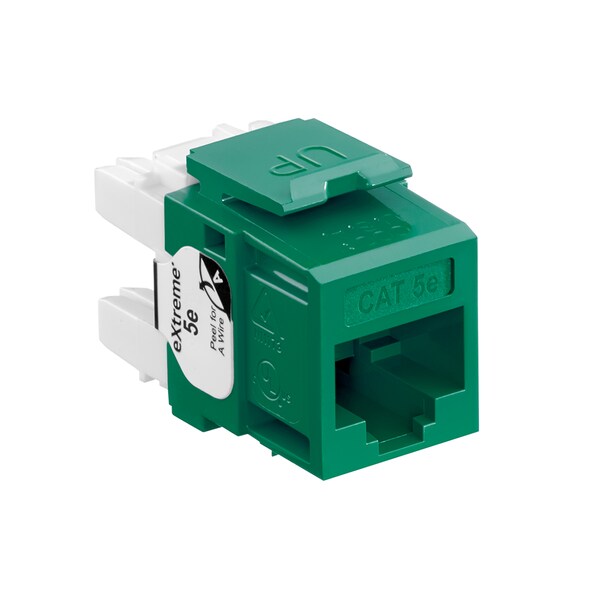

Leviton 1-Port Mod Jack 110 8W8P Utp, T568A/B Cat5E Quickport, Gigamax Green 5G110-RV5

1-Port Mod Jack 110 8W8P Utp, T568A/B Cat5E Quickport, Gigamax Green (Discontinued)

  • Mfr # 5G110-RV5
  • Zoro # G3966874
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5G110-RV5
Zoro #
G3966874
UPC #
078477177099
Country of Origin
United States

Dimensions

Width
6 in
Height
0.62 in
Size
0.89 H x 0.64 W x 1.21 D in
Length
4.00 in

Details

Cable Type
8-Conductor UTP Copper Cat 5, 5e and 6
Color
Green
Type
CAT 5e+ Quickport Connector
Connector Type
RJ-45 Network - Female
Termination Type
110 Punchdown
Application
Commercial, Voice, Data and Video Applications
Contact Sub-Surface Material
100 microinches thick Nickel-Plated
Flammability
Rated V-0 per UL 94
Style Name
eXtreme
Category Rating
Cat 5e
Module Style
Connector
FCC
Part 68 Compliant
UL
cULus Listed
Contact Surface Material
50 microinches thick Gold-Plated
Contact Base Material
Phosphor Bronze
Body Material
High-Impact Fire-Retardant Plastic
Shielding
UTP
Body Color
Green
Position / Conductor
8P8C
TIA/EIA
TIA-568-B
CSA
Certified
ISO/IEC
11801
Standards and Certifications
TIA/EIA cULus Listed
Module Type
Category 5e
NEC
Article 800 Compliant
Wiring Standard
T568A T568B
Connector Feature
Channel/Component Rated
Product Name
GigaMax 5e+ Component-Rated Keystone Jack
Certifications & Standards
UL Listed
Product Type
Network Connector
Product Color
Green
110 Block
Yes
Product Series
5e+
Product Line
GigaMax
Connector Details
RJ-45 Network Female
Mounting
Wallplate, Panel
Environmental Conditions
Flammability (Rated V-0 per UL94)
Standard
ANSI\TIA-568-C.2;ISO\IEC 11801;ANSI\TIA-1096-A (Formerly FCC Part 68);cULus Listed;CSA Certified

Description

GigaMax 5e+ QuickPort Connector, CAT 5e, green
