  13. 30 Amps Ac 600Vac Manual Motor Switch
This item is Discontinued.

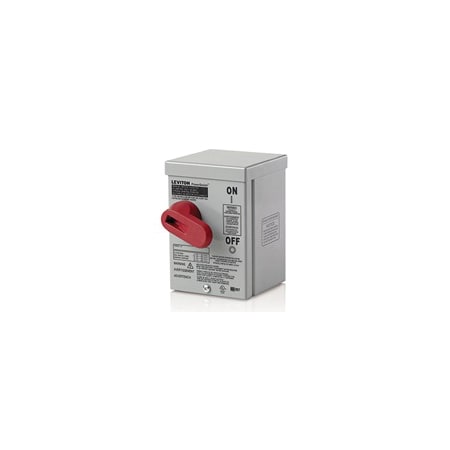

Leviton 30 Amps Ac 600Vac Manual Motor Switch N3302-DS

30 Amps Ac 600Vac Manual Motor Switch (Discontinued)

  • Mfr # N3302-DS
  • Zoro # G4064935
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N3302-DS
Zoro #
G4064935
UPC #
78477374405
Country of Origin
Mexico

Dimensions

Height
6.20"
Depth
5.40"
Width
4.30"
Length
6.56 in
Dimensions
6.15 in H x 4.26 in W x 5.42 in D

Details

Contact Form
DPST
Material
Polyester
Voltage
600VAC
Connection
Back Wired;Side Wired
Standards
UL,ANSI,NOM
Color
Gray
Item
Manual Motor Switch
Max. Voltage
600VAC
Amps AC
30
Operator
Lever
HP @ 1 Phase - 230V
5
Number of Poles
2
Enclosure NEMA Rating
3R
HP @ 1 Phase - 120V
2
Base Material
Thermoplastic Polyester
Enclosure Rating
Type 3R
ANSI
C-73
NEMA
WD-1 & WD-6
Toggle
Thermoplastic Polyester
Dielectric Voltage
Withstands 2200V for 1 min.
Operating Temperature
-40°C to 60°C
Terminal Accom.
#10-#8 AWG
cUL per CSA C22.2 No. 111
File #E63969
Endurance
6,000 cycles inductive motor type load
Device Type
Enclosed Switch
Yoke
Nickel-Plated Brass
Terminal ID
T1, T2, L1, & L2 marked on back of device
Torque Range
25 inch pounds maximum
Pole
2
UL 60947-4-1
supersedes UL 508
Face Material
Thermoplastic Polyester
Termination
Back & Side
Contacts
Silver-Cadmium .031 Thick
Temperature Rise
50ºC Max at full rated current
Strap Material
Nickel Plated Brass
Flammability
Rated V-0 per UL 94
Grounding
Grounded To Enclosure
Terminal Screws
Nickel-Plated Brass 10-32
Enclosure Cover Material
Steel
Amperage
30 A
Voltage Rating
600 VAC
Horsepower
15 hp
Actuator Type
Pistol Grip Toggle
Enclosure Type
NEMA 3R
Actuator
Toggle
Action
DPST
Environmental Conditions
Flammability (Rated V-0 per UL94)
Standard
NEMA (WD-1 & WD-6);ANSI (C-73);NOM Certified (057);UL508 (File E63969);cUL per CSA C22.2 No. 111 (File E63969)
Application
Commercial
Type
Enclosure with Double-Pole AC Motor Starter Switch
Terminal Type
Back/Side Wired Screw
Temperature Rating
-40 to 60 °C

Description

30-Amp, 600 Volt, Toggle In Type 3R Enclosure Double-Pole, Industrial Grade, Grounded to Enclosure, Gray
