  9. Combination Device Switch Combo Single Pole

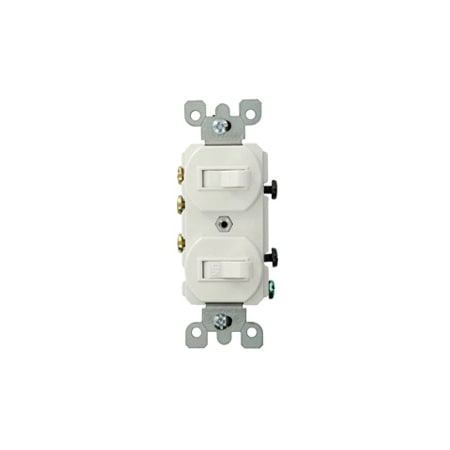

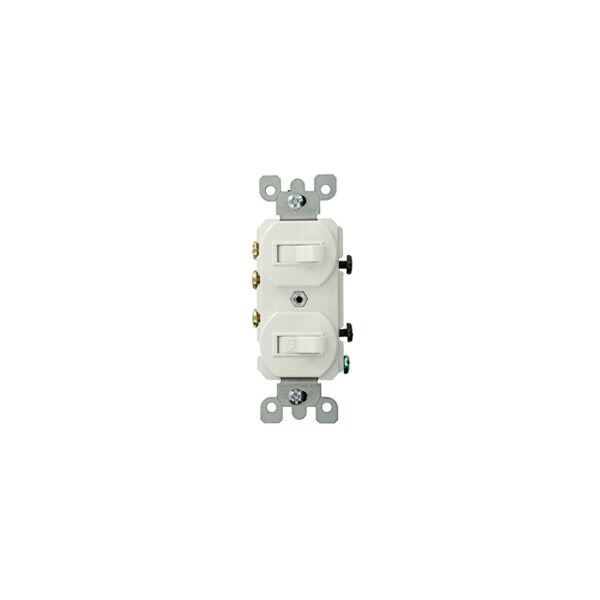

Leviton Combination Device Switch Combo Single Pole 5241-WS - main

Combination Device Switch Combo Single Pole

  • Mfr # 5241-WS

  • Zoro # G4050847

product price: $14.35
/ea

Key Features

Type
Duplex Style Combination Switch
Grade
Residential/Commercial Specification Grade
Number of Poles
1
Height
4.12 in
Width
1.88 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5241-WS
Zoro #
G4050847
UPC #
78477070987
Country of Origin
Mexico

Dimensions

Height
4.12 in
Width
1.88 in
Length
1.81 in
Size
4.20 H x 1.62 W x 16 D in

Details

Type
Duplex Style Combination Switch
Grade
Residential/Commercial Specification Grade
Number of Poles
1
Color
White
Operating Temperature
-40°C to 65°C
Flammability
Rated V-2 per UL 94
Torque Range
14- 18 in.-lbs
Amperage
15 A
UL Standard
UL 20
Switch Amperage
15 Amp
Termination
Side
Temperature Rise
Maximum 30 degrees C rise
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Max. Amperage
12 Amp
Product Type
2-Switch Combo
ANSI
C-73
Terminal Accom.
14-12 AWG
HP Rating
1/2HP-120V
Body Material
Thermoplastic
Switch Voltage
120/277V AC
NEMA
WD-1 & WD-6
Actuator Material
Thermoplastic
Strap Material
Steel
Dielectric Voltage
Withstands 1500V for 1 minute
Grounding
Grounding
Operating Cycles
100 Cycles
Voltage Rating
120/277 VAC
Electrical Ratings
15 A, 125 VAC, 1800 W
Environmental Conditions
Flammability (Rated UL 94 V-2)
Material
Thermoplastic/Steel
Actuator
Toggle
Contact Rating
120/277 VAC;15 AMP
Connection
Side Wired
Mounting
Wallplate
Series
Traditional
Application
Commercial
Enclosure
NEMA 5-15R
Standard
UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057);NEMA (WD-1, WD-6);ANSI (C-73);UL 20;CSA Certified (C222.2 No.111 152105)

Description

15 Amp 120 Volt 2 Toggle Combination Switches, Single Pole, 3-Way, Spec Grade, White
