  11. COMBINATION DEVICE SWITCH TWO 3W SW PKD

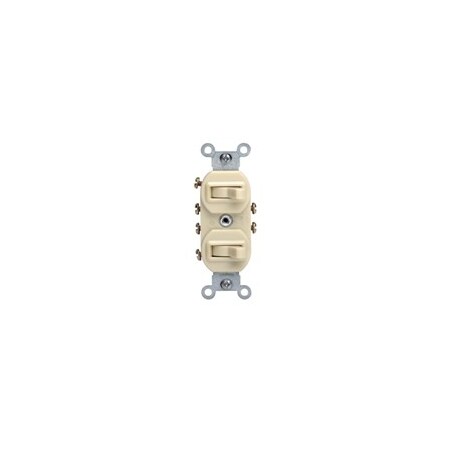

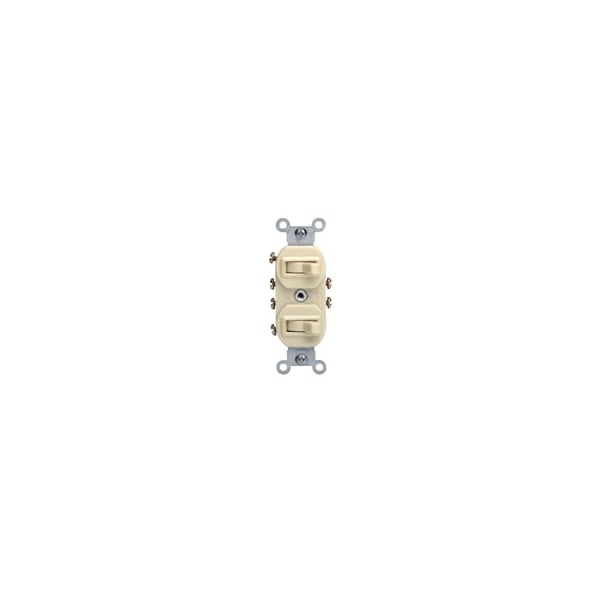

Leviton COMBINATION DEVICE SWITCH TWO 3W SW PKD 5243-W - main

COMBINATION DEVICE SWITCH TWO 3W SW PKD

  • Mfr # 5243-W

  • Zoro # G4055388

product price: $16.95
/ea

Key Features

Color
White
Type
Duplex Style Combination Switch
Voltage
120/277 VAC
Grade
Residential/Commercial Specification Grade
Length
1.81 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5243-W
Zoro #
G4055388
UPC #
78477229606
Country of Origin
Mexico

Dimensions

Length
1.81 in
Height
4.12 in
Width
1.88 in
Size
4.20 H x 1.62 W x 16 D in

Details

Color
White
Type
Duplex Style Combination Switch
Voltage
120/277 VAC
Grade
Residential/Commercial Specification Grade
Number of Poles
1
Application
Commercial
Actuator Material
Thermoplastic
Operating Temperature
-40°C to 65°C
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Max. Amperage
12 Amp
Feature
3-Way / 3-Way
Terminal Accom.
14-12 AWG
Termination
Side
Strap Material
Steel
HP Rating
1/2HP-120V 2HP-240V-277V
UL Standard
UL 20
Grounding
Non-Grounding
Amperage
15 A
ANSI
C-73
Product Type
2-Switch Combo
Body Material
Thermoplastic
Switch Amperage
15 Amp
Switch Voltage
120/277V AC
Dielectric Voltage
Withstands 1500V for 1 minute
NEMA
WD-1 & WD-6
Flammability
Rated V-2 per UL 94
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
Torque Range
14 "- 18 in.-lbs
Temperature Rise
Maximum 30 degrees C rise
Pole
3
Mounting
Wallplate
Standard
UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057);NEMA (WD-1, WD-6);ANSI (C-73);UL 20;CSA Certified (C222.2 No.111 152105)
Operating Cycles
100
Actuator
Toggle
Environmental Conditions
Flammability (Rated UL 94 V-2)
Electrical Ratings
15 A, 125 VAC, 1800 W
Contact Rating
120/277 VAC;15 AMP
Connection
Side Wired
Enclosure
NEMA 5-15R

Description

Leviton 5243 15 Amp, 120/277 Volt, Duplex Style Two 3-Way Combination Switch, Commercial Grade, White
